Saunaled Sq

Saunaled Sq Sauna luminaire 8W 2700K 500lm Dim phase cut-on; IP65; Protection cl. I; L70B50 15000h; LED not exchangeable; CRI>80; SDCM5; Ending; 3x2.5mm²; Housing al; Colour wh; Cover Plastic, opal

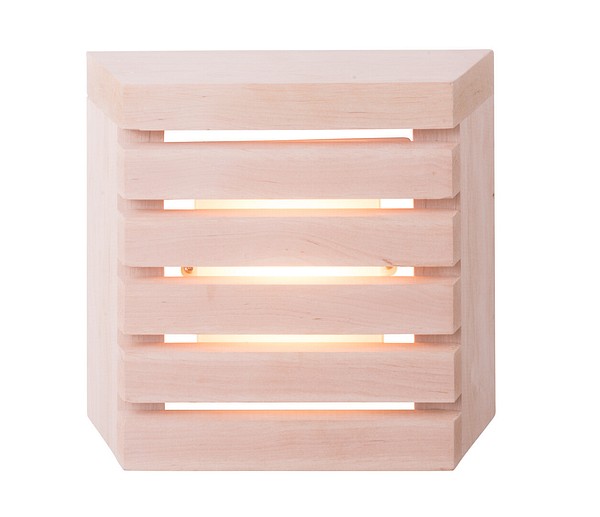

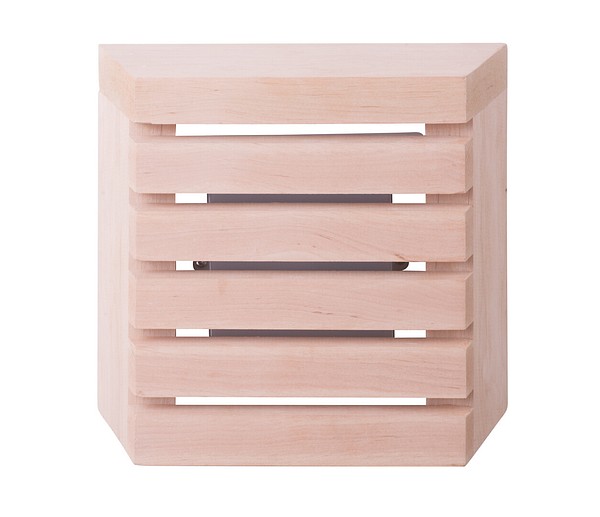

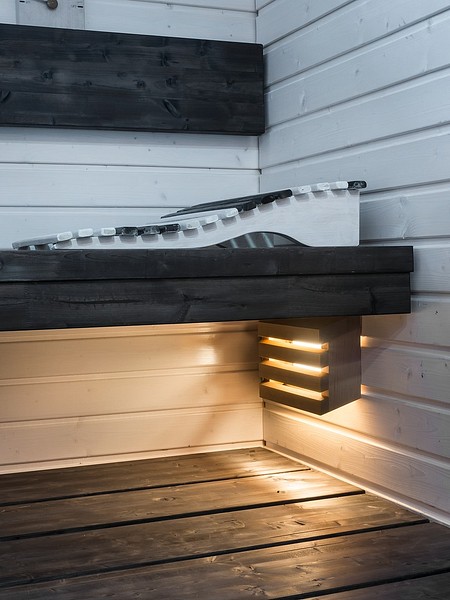

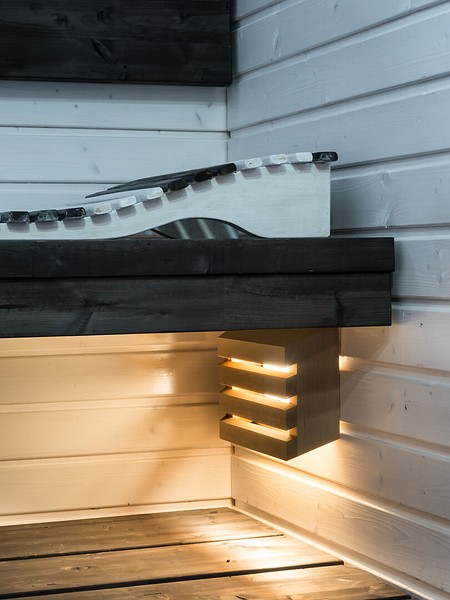

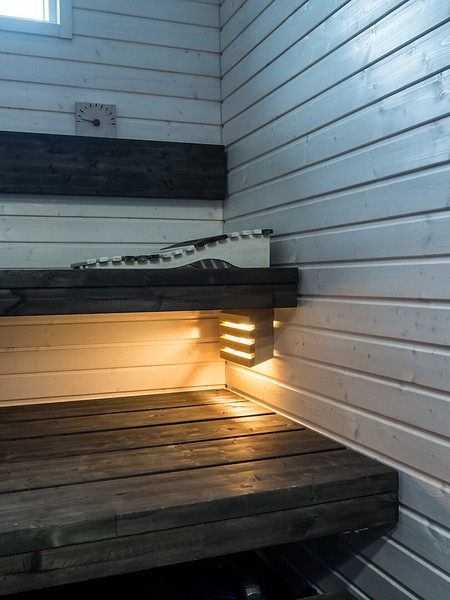

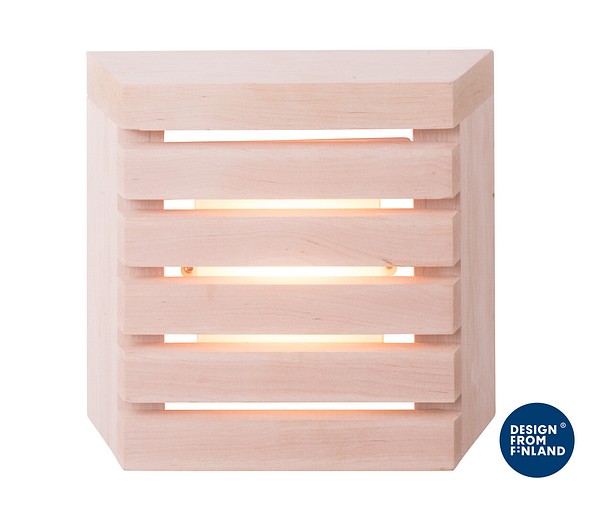

Saunaled Sq (square) is a stylish sauna luminaire equipped with an integrated AC LED. The wooden shade is manufactured in Finland from high-quality domestic alder. The luminaire is dimmable, allowing you to adjust the light output to suit the atmosphere. The dust- and water-tight luminaire can be surface-mounted or recessed into the wall. We recommend treating the wooden parts with a wood protection product before use. You may also tint the wood to match your sauna interior. The product carries the Design from Finland label.

Code

4126226

  • Three year extended warranty
  • Expert airam 247 support
  • Fast and reliable delivery
Add to favourites Add to favourites

Product Overview

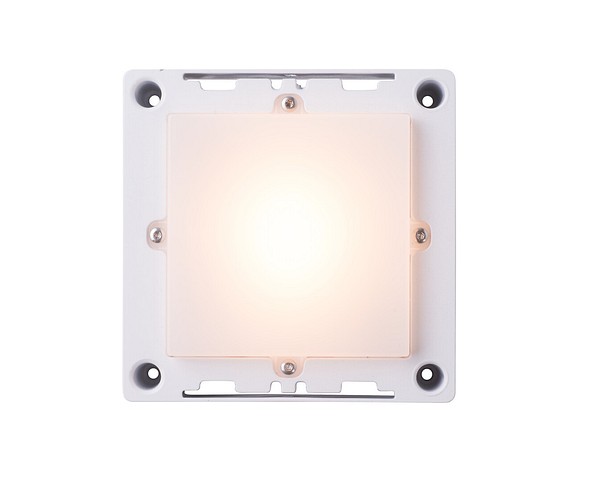

Body aluminium, diffuser plastic (PC), frame untreated alder.

Colour: untreated alder.

Surface-mount or recessed installation.

Screw terminals 3 × 2.5 mm².

Maximum installation height 1 m.

Colour temperature 2700 K.

Colour rendering index 80–89. CRI > 80 / Ra > 80.

IP65 protection class.

Integrated AC LED 8 W, 500 lm.

Dimmable.

Operating temperature 5 … 60 °C.

Lifetime L70B50 15,000 h.

Wood frame recommended to be treated with a wood protection product.

TRL = alder.

Technical details

Codes and names
Airam code
A1SAAA
GTIN
6435200238832
General name
Sauna luminaire
Product family
Saunaled Sq
Technical name
IP65 8W/827 DIM PCO TRL Sq
Mounting
Suitable for wall mounting
Yes
Suitable for suspended mounting
No
Suitable for ceiling mounting
No
Suitable for recessed mounting
Yes
Suitable for surface mounting
Yes
Suitable for light line configuration
No
Suitable for clamp-mounting
No
Fit for workplace acc. EN 12464-1
No
Degree of protection (IP), rear side
Other
Degree of protection (IP), front side
IP65
Suitable for emergency lighting
No
Emergency function monitoring system
None
Type of wiring
Ending
Number of poles
3
Conductor cross section (mm²)
2,50
Connection type
Screwed terminal
Connectable conductor cross section (min) (mm²)
1,50
Connectable conductor cross section (max) (mm²)
2,50
Structure
With mounting material
Yes
Lamp type
LED not exchangeable
Light source included
Yes
Suitable for number of lamps
1
Lamp holder
Other
Housing material
Aluminium
Housing surface protection
Powder coating
Housing colour
White
Cover material
Plastic, opal
Type of grid
Matt
Control gear included
Yes
Exchangeable control gear
No
Energy efficiency class of light source according to EU regulation 2019/2015
G
Containing product according to 2019/2020/EU
Yes
Emergency power supply system
None
Emergency power supply integrated
No
With switch
No
With air slots
No
Electrotechnical data
Voltage type
AC
Nominal voltage (min) (V)
220
Nominal voltage (max) (V)
240
Nominal current (min) (mA)
45
Nominal current (max) (mA)
45
Type of control gear
Not required
Suitable for lamp power (min) (W)
8
Suitable for lamp power (max) (W)
8
Luminaire efficacy (min) (lm/W)
62
Luminaire efficacy (max) (lm/W)
62
Maximum system power (W)
8
Luminaire efficacy (lm/W)
62
Power factor
0,90
Total harmonic distortion (THD) (%)
20
Total harmonic distortion
20
Dimming and control
Dimmable
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DALI-2
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming trailing edge
Yes
Dimming leading edge
Yes
Dimming programmable
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Zigbee
No
Dimming with push-button
No
No dimming function
No
With presence indicator
No
With movement sensor
No
Constant luminous flux control
No
Bluetooth operated
No
Compatible with Casambi
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Photometric data
Light distributor
Other
Light sharing
Symmetric
Beam angle
Open beam
Colour consistency (McAdam ellipse)
SDCM5
Light outlet
Direct
Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
500
Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
500
Colour of light (alphanumeric)
White
Effective luminous flux (lm)
500
Colour temperature (min) (K)
2700
Colour temperature (max) (K)
2700
Flickering value Pst LM
1
Stroboscope effect value SVM
0,40
Photobiological safety according to EN 62471
RG0
Colour temperature switchable
No
Lumen setting adjustable
Continuously variable
Beam angle adjustable
No
Lifetime and capacity
Rated life time L70/B50 at 25 °C (h)
15000
Rated life time L80/B50 at 25 °C
10000
Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
10
Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
15
Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
5
Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
60
Measurements
Width (mm)
268
Height/depth (mm)
270
Length (mm)
66
Built-in length (mm)
164
Built-in width (mm)
164
Built-in height/depth (mm)
45
