Avira S IP20 13W CCT DIM REMOTE WH

Avira Surface mounted luminaire 13W 2700K/4000K/6500K 1000lm Dim RF; IP20; IK00; Protection cl. II; L70B50 30000h; LED not exchangeable; CRI>80; SDCM6; Suitable for through wiring; 2x0.75-1.5mm²; Housing Other; Colour wh

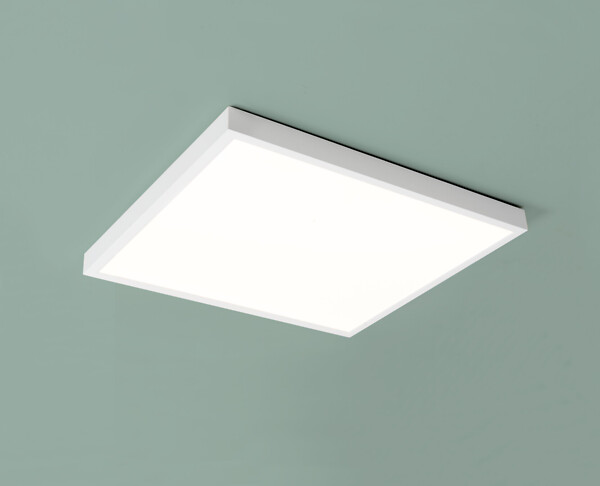

Avira is a versatile panel luminaire for general lighting in the home or small office. The product family contains panel luminaires in three different sizes: the square-shaped Avira S (295 x 295 mm), the rectangular Avira M (295 x 595 mm) and the long Avira L (295 x 1195 mm). The luminaire can be dimmed with the included remote. The colour temperature is also adjustable in increments of 2700 K / 4000 K / 6500 K. Easy surface installation! The power supply has a wire to which the wires coming from the ceiling are connected.

Code

9610618

  • Three year extended warranty
  • Expert airam 247 support
  • Fast and reliable delivery
Add to favourites Add to favourites

Product Overview

For dry indoor spaces.

Protection rating: IP20.

Three different sizes to choose from: Avira S, Avira M and Avira L.

Surface installation. Hanging installation kit available as an accessory.

Fixed LED:

Avira S: 13 W 1000 lm.

Avira M: 23 W 1800 lm.

Avira L: 42 W 3200 lm.

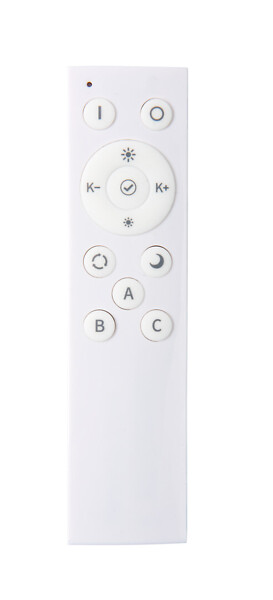

Remote controller for dimming and adjusting the colour temperature in steps.

3 year warranty.

Technical details

Codes and names
GTIN
6435200307880
General name
Surface mounted luminaire
Product family
Avira
Technical name
S 1000LM CCT DIM REMOTE WH
Mounting
Suitable for wall mounting
Yes
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for recessed mounting
No
Suitable for surface mounting
Yes
Suitable for light line configuration
No
Fit for workplace acc. EN 12464-1
Yes
Degree of protection (NEMA)
Other
Suitable for emergency lighting
No
Type of wiring
Suitable for through wiring
Number of poles
2
Conductor cross section (mm²)
0,75
Connection type
Screwless terminal
Connectable conductor cross section (min) (mm²)
0,75
Connectable conductor cross section (max) (mm²)
1,50
Structure
Lamp type
LED not exchangeable
Light source included
Yes
Suitable for number of lamps
1
Lamp holder
Other
Housing material
Other
Housing surface protection
Other
Housing colour
White
Type of grid
None
Control gear included
Yes
Exchangeable control gear
Yes
Energy efficiency class of light source according to EU regulation 2019/2015
D
Emergency power supply integrated
No
With air slots
No
Electrotechnical data
Voltage type
AC
Nominal voltage (min) (V)
198
Nominal voltage (max) (V)
264
Nominal current (min) (mA)
60
Nominal current (max) (mA)
80
Type of control gear
LED operating device voltage-controlled
Suitable for lamp power (min) (W)
13
Suitable for lamp power (max) (W)
13
Maximum system power (W)
13
Luminaire efficacy (lm/W)
76
Power factor
0,70
Dimming and control
Dimmable
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DALI-2
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming leading edge
No
Dimming programmable
No
Dimming potentiometer (integrated)
No
Dimming RF
Yes
Dimming Sine Wave Reduction
No
Dimming Zigbee
No
Dimming with push-button
No
No dimming function
No
With presence indicator
No
With movement sensor
No
Constant luminous flux control
Yes
Bluetooth operated
No
Compatible with Casambi
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Photometric data
Light distributor
Diffuser lens/optic/panel
Light sharing
Symmetric
Beam angle
Open beam
Colour consistency (McAdam ellipse)
SDCM6
Light outlet
Direct
Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
1000
Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
1000
Colour of light (alphanumeric)
White
Effective luminous flux (lm)
1000
Colour temperature (min) (K)
2700
Colour temperature (max) (K)
6500
Flickering value Pst LM
1
Stroboscope effect value SVM
0,40
Photobiological safety according to EN 62471
RG0
Colour temperature switchable
Discrete positions
Lumen setting adjustable
Continuously variable
Beam angle adjustable
No
Lifetime and capacity
Rated life time L70/B50 at 25 °C (h)
30000
Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
95
Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
2
Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
-20
Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
40

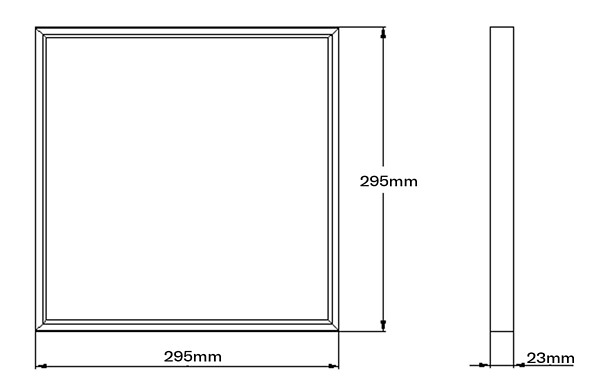

Measurements
Width (mm)
295
Height/depth (mm)
23
Length (mm)
295
