Basic Led IP20 28W/840 PCO WH

BASIC LED Ytmontage universalarmatur 28W 4000K 3000lm No dim; IP20; Protection cl. I; L70B50 35000h; LED not exchangeable; CRI>80; Suitable for through wiring; 3x2.5mm²; Housing Steel; Colour wh; Cover Plastic, opal

The low-profile Basic Led is suitable for dry indoor areas in the home. This efficient general luminaire switches on instantly and produces an even white light, 4000 K. Integrated LED module. Install the luminaire, for example, in a utility room, walk-in closet or storage space. The range includes two length and output options.

Code

4126231

  • Three year extended warranty
  • Expert airam 247 support
  • Fast and reliable delivery
Add to favourites Add to favourites

Product Overview

Body powder-coated steel, diffuser opal polycarbonate.

White, RAL 9016.

Protection class I.

Surface-mounted on ceiling.

Suitable for through-wiring, 3 × 2.5 mm².

Colour temperature 4000 K. CRI > 80 / Ra > 80.

MacAdam 6 SDCM.

IP20 rated.

Integrated LED 18 W 2000 lm, 28 W 3000 lm.

Operating temperature 0 … 25 °C.

Lifetime L70 35 000 h (Ta25°).

Technical details

Codes and names
Airam code
A1KOCB
GTIN
6435200238931
General name
Surface mounted luminaire
Product family
Basic Led
Technical name
IP20 28W/840 PCO WH
Mounting
Suitable for wall mounting
No
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for recessed mounting
No
Suitable for surface mounting
Yes
Suitable for light line configuration
No
Fit for workplace acc. EN 12464-1
No
Suitable for emergency lighting
No
Type of wiring
Suitable for through wiring
Number of poles
3
Conductor cross section (mm²)
2,50
Connection type
Screwless terminal
Structure
Lamp type
LED not exchangeable
Light source included
Yes
Suitable for number of lamps
1
Lamp holder
Other
Housing material
Steel
Housing surface protection
Powder coating
Housing colour
White
Cover material
Plastic, opal
Type of grid
None
Control gear included
Yes
Exchangeable control gear
Yes
Energy efficiency class of light source according to EU regulation 2019/2015
E
Emergency power supply integrated
No
With air slots
Yes
Electrotechnical data
Voltage type
AC
Nominal voltage (min) (V)
220
Nominal voltage (max) (V)
240
Type of control gear
LED operating device current-controlled
Suitable for lamp power (min) (W)
28
Suitable for lamp power (max) (W)
28
Maximum system power (W)
28
Luminaire efficacy (lm/W)
107
Power factor
0,90
Total harmonic distortion
22
Dimming and control
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DALI-2
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming leading edge
No
Dimming programmable
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Zigbee
No
Dimming with push-button
No
No dimming function
Yes
With movement sensor
No
Constant luminous flux control
No
Bluetooth operated
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Photometric data
Light distributor
Diffuser lens/optic/panel
Light sharing
Symmetric
Beam angle
Open beam
Colour consistency (McAdam ellipse)
SDCM6
Light outlet
Direct
Colour of light (alphanumeric)
White
Effective luminous flux (lm)
3000
Colour temperature (min) (K)
4000
Colour temperature (max) (K)
4000
Flickering value Pst LM
1
Stroboscope effect value SVM
0,40
Photobiological safety according to EN 62471
RG0
Colour temperature switchable
No
Lumen setting adjustable
No
Beam angle adjustable
No
Lifetime and capacity
Rated life time L70/B50 at 25 °C (h)
35000
Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
70
Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
5
Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
0
Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
25

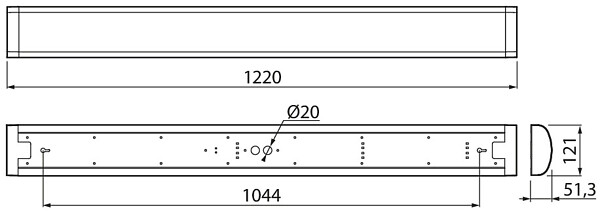

Measurements
Width (mm)
121
Height/depth (mm)
51,30
Length (mm)
1220
