Coloris 24V IP65 10W/m RGBTW 5m

Coloris 24V 50W 10W/m RGBW 2200K IP65; Protection cl. III; L70B50 50000h; LED not exchangeable; CRI>90; Ending; 6x0.3mm²

With the Coloris LED strip you can create different kinds of atmospheres depending on the space and the situation. The white colour temperature is continuously adjustable and gives lots of possibilities to the general lighting. With RGB you can choose from millions of colours to use in creating intriguing details and atmospheres. You can light up spaces without a glare indirectly by reflecting the light into a space via surfaces. The strip can be installed to a window post as well as on the back of furnitures, frames and mirrors. A LED strip installed on a railing or on the surface beneath the stairs brings more safety to a staircase. The IP65 strip is suitable for humid spaces indoors or as installed without a profile on furniture surfaces. The colour rendering and the luminous flux of the Coloris LED-strip is outstanding, CRI90, 1400 lm/m. The series also includes a ready to be used package of the IP20 model, which contains the LED strip as well as all the needed components.

Code

4146522

  • Three year extended warranty
  • Expert airam 247 support
  • Fast and reliable delivery
Add to favourites Add to favourites

Technical details

Codes and names
Airam code
A2LSAB
GTIN
6435200271341
Product family
Coloris 24V
Technical name
IP65 10W/m RGBTW 5m
Photometric data
Colour temperature (min) (K)
2200
Luminous flux per meter (lm)
1400
Colour of light (alphanumeric)
RGBW
Radiation angle (°)
120
Colour temperature (max) (K)
6500
Colour temperature switchable
No

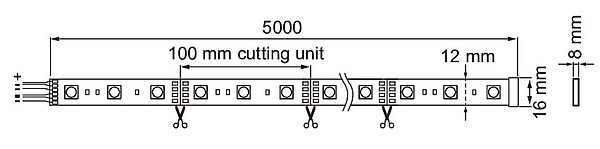

Measurements
Length (mm)
5000
Height/depth (mm)
8
Width (mm)
16
Electrotechnical data
Voltage type
DC
Type of control gear
LED operating device voltage-controlled
Lamp voltage (min) (V)
24
Lamp power per meter (W)
10
Maximum system power (W)
50
Lamp voltage (max) (V)
24
Structure
With protective cover
Yes
Lamp type
LED not exchangeable
Self-adhesive
Yes
Number of LEDs per metre
180
Length of particular segments (mm)
100
Model
Tape
With connection set
No
With end piece
Yes
Energy efficiency class of the built-in lamp
A++, A+, A (LED)
Mounting
Mounting method
Surface mounting
Connection type
Solder
Number of poles
6
Conductor cross section (mm²)
0,30
Type of wiring
Ending
Lifetime and capacity
Rated life time L70/B50 at 25 °C
50000
