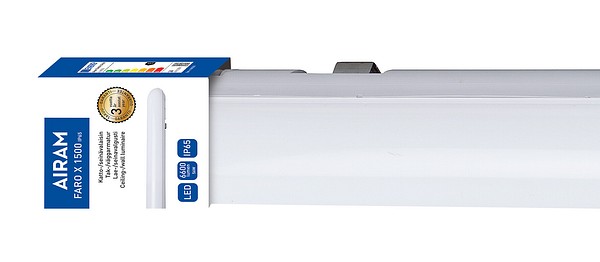

Faro X 1500 IP65 56W/840 PCO GR

Faro X Surface mounted luminaire 56W 4000K 6600lm No dim; IP65; Protection cl. I; L70B50 40000h; LED not exchangeable; CRI>80; SDCM6; Suitable for through wiring; 3x1.5mm²; Housing Plastic; Colour gr; Cover Plastic, opal

Faro X is a quality universal luminaire for indoor use, such as cellars, storage spaces and garages. The enclosure class of the light is IP65: it’s completely dust proof, water proof and protected from water from all sides. The even and powerful LED light lights up instantly, colour temperature 4000 K. Fixed LED. The light is easy to install with the included metal installation brackets. Surface mounting on the ceiling, 3 x 1,5 mm². Through-wired, easy to chain. Three different lengths. Faro X is not suitable for agricultural or industrial use.

Code

4146708

  • Three year extended warranty
  • Expert airam 247 support
  • Fast and reliable delivery
Add to favourites Add to favourites

Product Overview

Frame and shade are made of polycarbonate.

Protection class I.

Surface mounting 3 x 1,5 mm2, connectable. IP65.

Colour temperature 4000K.

CRI > 80 / Ra > 80.

600 mm 24 W 2650 lm.

1200 mm 48 W 5800 lm.

1500 mm 56 W 6600 lm.

MacAdam 6 SDCM.

Installation height 2-4 m.

Ambient temperature range 0 ... 25 °C.

Lifespan L70 40,000 h (Ta25 °C).

Technical details

Codes and names
Airam code
A1JOVF
GTIN
6435200289421
General name
Surface mounted luminaire
Product family
Faro X
Technical name
1500 IP65 56W/840 PCO GR
Mounting
Suitable for wall mounting
Yes
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for recessed mounting
No
Suitable for surface mounting
Yes
Suitable for light line configuration
No
Fit for workplace acc. EN 12464-1
No
Suitable for emergency lighting
No
Type of wiring
Suitable for through wiring
Number of poles
3
Conductor cross section (mm²)
1,50
Structure
Lamp type
LED not exchangeable
Light source included
Yes
Suitable for number of lamps
1
Lamp holder
Other
Housing material
Plastic
Housing colour
Grey
Cover material
Plastic, opal
Type of grid
Matt
Control gear included
Yes
Energy efficiency class of light source according to EU regulation 2019/2015
E
Emergency power supply integrated
No
Electrotechnical data
Voltage type
AC
Nominal voltage (min) (V)
220
Nominal voltage (max) (V)
240
Type of control gear
Electronic ballast
Suitable for lamp power (min) (W)
56
Suitable for lamp power (max) (W)
56
Maximum system power (W)
56
Luminaire efficacy (lm/W)
117
Dimming and control
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DALI-2
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming leading edge
No
Dimming programmable
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Zigbee
No
Dimming with push-button
No
No dimming function
Yes
With movement sensor
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Photometric data
Light distributor
None
Light sharing
Symmetric
Beam angle
Open beam
Colour consistency (McAdam ellipse)
SDCM6
Light outlet
Direct
Colour of light (alphanumeric)
White
Effective luminous flux (lm)
6600
Colour temperature (min) (K)
4000
Colour temperature (max) (K)
4000
Colour temperature switchable
No
Lumen setting adjustable
No
Beam angle adjustable
No
Lifetime and capacity
Rated life time L70/B50 at 25 °C (h)
40000
Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
0
Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
25
Measurements
Width (mm)
100
Height/depth (mm)
68
Length (mm)
1500
