Flex Multi IP20 9W 830/840/865 DIM

Flex Multi is a dimmable panel luminaire that is suitable for dry spaces in residences and public properties. Lightweight surface or semi-flush mounting. Before installation, choose the temperature of the light out of three options: 3000 K, 4000 K or 6500 K. The advantages of the Flex Multi series are both the very thin build and the adjustable spring mounting, which allows the luminaire to fit into almost any pre-made recess (55-250 mm) depending on the size of the product. The adjustability of the slot combined with the thin frame makes this light fixture the perfect choice for renovation sites. Available in three different sizes and wattages. PIR model also available.

Code

9610519

  • Three year extended warranty
  • Expert airam 247 support
  • Fast and reliable delivery
Add to favourites Add to favourites

Product Overview

Frame and shade made of white polycarbonate.

Surface or flush mounting.

Fixed connecting cable 2 x 0,75 mm2 included.

Colour temperatures 3000 K, 4000 K, 6500 K, adjustable before installation.

IP20/IP20.

Led fixed 9 W / 500 lm, 12 W / 1000 lm, 16 W / 1500 lm.

PIR model 12 W / 1000 lm.

Dimmable.

Trailing edge control.

Ambient temperature range 0 ... 25 °C.

Lifespan L70 30000 h (Ta25 °C).

Power supply lifespan 30,000 h.

Technical details

Codes and names
Airam code
A7GALL
GTIN
6435200289445
Product family
Flex Multi
Technical name
IP20 9W 830/840/865 DIM WH
Mounting
Suitable for recessed mounting
Yes
Suitable for surface mounting
Yes
Suitable for wall mounting
No
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
Suitable for low voltage cable system
No
Type of wiring
Ending
Number of poles
2
Conductor cross section (mm²)
0,75
Connectable conductor cross section (min) (mm²)
1,50
Connectable conductor cross section (max) (mm²)
2,50
Connection type
Other
Max. number of luminaires per miniature circuit breaker B16
61
Max. number of luminaires per miniature circuit breaker C16
92
Fit for workplace acc. EN 12464-1
No
Structure
Adjustability
Not adjustable
Lamp type
LED not exchangeable
Light source included
Yes
Suitable for number of lamps
1
Lamp holder
Other
Housing material
Plastic
Surface protection
Plastic-coated
Housing colour
White
Cover material
Plastic, opal
Surface brushed
No
Control gear included
Yes
Exchangeable control gear
Yes
Reflector
White
Energy efficiency class of light source according to EU regulation 2019/2015
G
Emergency power supply integrated
No
Dimming and control
With movement sensor
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI-2
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming leading edge
Yes
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Zigbee
No
Dimming with push-button
No
No dimming function
No
Constant luminous flux control
No
IFTTT support available
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Electrotechnical data
Voltage type
AC
Nominal voltage (min) (V)
220
Nominal voltage (max) (V)
240
Type of control gear
LED operating device current-controlled
Suitable for lamp power (min) (W)
9
Suitable for lamp power (max) (W)
9
Maximum system power (W)
9
Power factor
0,90
Luminaire efficacy (lm/W)
56
Photometric data
Light distributor
Diffuser lens/optic/panel
Light sharing
Symmetric
Beam angle
Extreme wide beam >80°
Light outlet
Direct
Colour of light (alphanumeric)
White
Colour temperature (min) (K)
3000
Colour temperature (max) (K)
6500
Colour temperature switchable
Discrete positions
Luminous flux (min) (lm)
500
Luminous flux (max) (lm)
500
Effective luminous flux (lm)
500
Lumen setting adjustable
No
Beam angle adjustable
No
Photobiological safety according to EN 62471
RG0
Colour consistency (McAdam ellipse)
SDCM5
Unified Glare Rating (UGR)
22
Lifetime and capacity
Rated life time L70/B50 at 25 °C (h)
30000
Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
80
Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
70
Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
5
Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
10
Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
0
Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
25

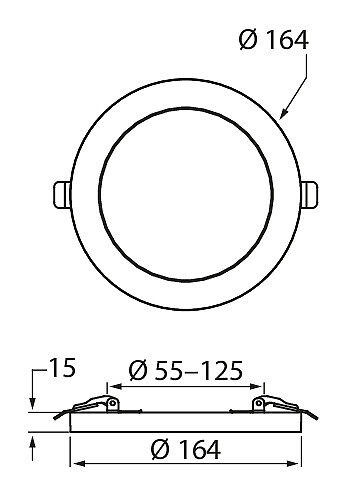

Measurements
Length (mm)
164
Width (mm)
164
Height/depth (mm)
15
Outer diameter (mm)
164
Recess diameter (min) (mm)
55
Recess diameter (max) (mm)
125
