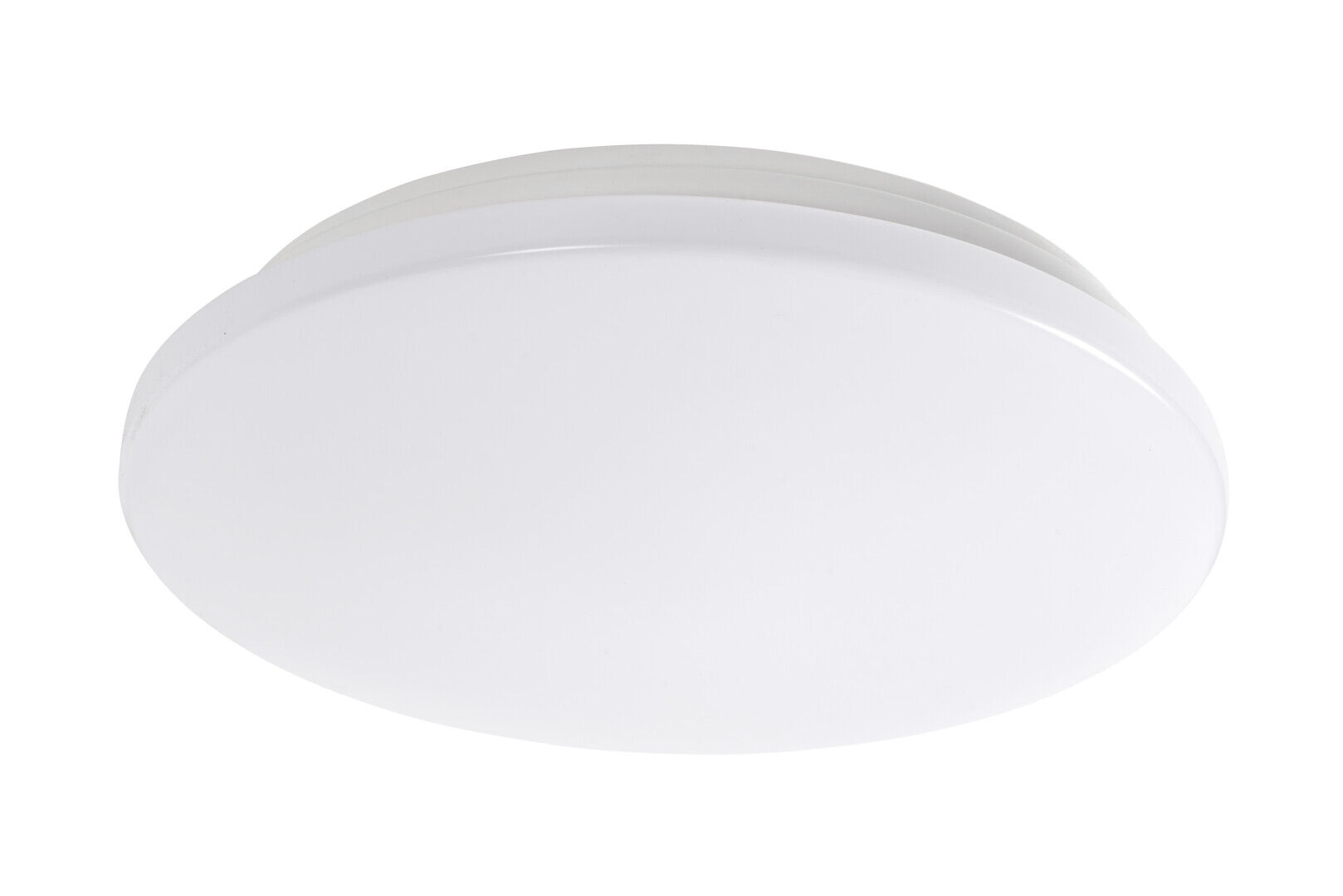

Flo Basic 300 IP20 15W/830 1300lm
Flo Basic Surface mounted luminaire 15W 3000K 1300lm No dim; IP20; IK01; Protection cl. II; L70B50 25000h; LED not exchangeable; CRI>80; SDCM6; Suitable for through wiring; 3x2.5mm²; Housing Plastic; Colour wh; Cover Plastic, opal
The Flo Basic ceiling light is suitable for general lighting in dry indoor areas of the home. The luminaire has a diameter of 300 mm and is available in two versions: white (3000 K) or cool white (4000 K) colour temperature. The light features an integrated LED module. Flo Basic is an affordable basic ceiling light that meets the general lighting needs of dry indoor spaces.
Also available with a euro-pallet display stand suitable for campaigns. The stand includes 80 Flo Basic luminaires.
Code
9610581
- Three year extended warranty
- Expert airam 247 support
- Fast and reliable delivery
Add to favourites
Add to favourites
Product Overview
Surface-mounted and connected to a lamp socket or terminal block on a wall or the ceiling.
For indoor use.
Enclosure rating: IP20
Non-replaceable LED, 15W 1300 lm.
Color temperature 3000 or 4000K.
Circular design, diameter 300 mm.
Energy class F.
Technical details
Codes and names
Airam code
A2FLOA
GTIN
6435200301208
General name
Surface mounted luminaire
Product family
Flo Basic
Technical name
300 IP20 15W/830 1300lm
Mounting
Suitable for wall mounting
Yes
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for recessed mounting
No
Suitable for surface mounting
Yes
Suitable for light line configuration
No
Fit for workplace acc. EN 12464-1
No
Suitable for emergency lighting
No
Type of wiring
Suitable for through wiring
Number of poles
3
Conductor cross section (mm²)
2,50
Connection type
Screwless terminal
Structure
Lamp type
LED not exchangeable
Light source included
Yes
Suitable for number of lamps
1
Lamp holder
Other
Housing material
Plastic
Housing surface protection
Plastic-coated
Housing colour
White
Cover material
Plastic, opal
Type of grid
White
Control gear included
No
Exchangeable control gear
No
Energy efficiency class of light source according to EU regulation 2019/2015
F
With air slots
No
Electrotechnical data
Voltage type
AC
Nominal voltage (min) (V)
220
Nominal voltage (max) (V)
240
Nominal current (min) (mA)
107
Nominal current (max) (mA)
107
Type of control gear
LED operating device current-controlled
Suitable for lamp power (min) (W)
15
Suitable for lamp power (max) (W)
15
Maximum system power (W)
15
Luminaire efficacy (lm/W)
87
Power factor
0,60
Total harmonic distortion
110
Dimming and control
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DALI-2
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming leading edge
No
Dimming programmable
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Zigbee
No
Dimming with push-button
No
No dimming function
Yes
With movement sensor
No
Bluetooth operated
No
Compatible with Casambi
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Photometric data
Light distributor
None
Light sharing
Symmetric
Beam angle
Extreme wide beam >80°
Colour consistency (McAdam ellipse)
SDCM6
Light outlet
Indirect
Colour of light (alphanumeric)
White
Effective luminous flux (lm)
1300
Colour temperature (min) (K)
3000
Colour temperature (max) (K)
3000
Photobiological safety according to EN 62471
RG2
Luminous intensity (cd)
240
Colour temperature switchable
No
Lumen setting adjustable
No
Beam angle adjustable
No
Lifetime and capacity
Rated life time L70/B50 at 25 °C (h)
25000
Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
-10
Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
40
Measurements
Width (mm)
300
Height/depth (mm)
63
Length (mm)
300
Outer diameter (mm)
300
