Gaia Slim R 400 22W/827-865

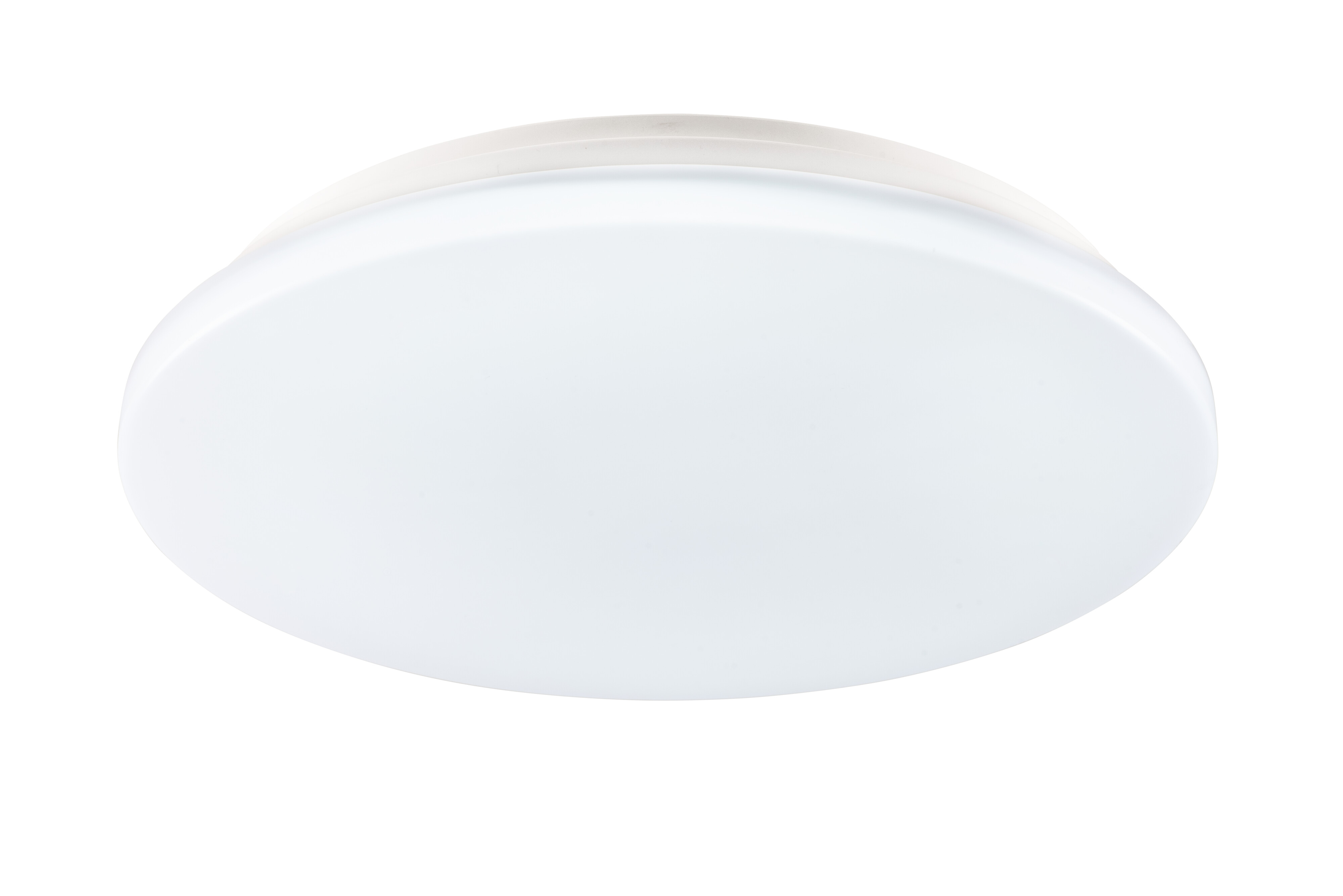

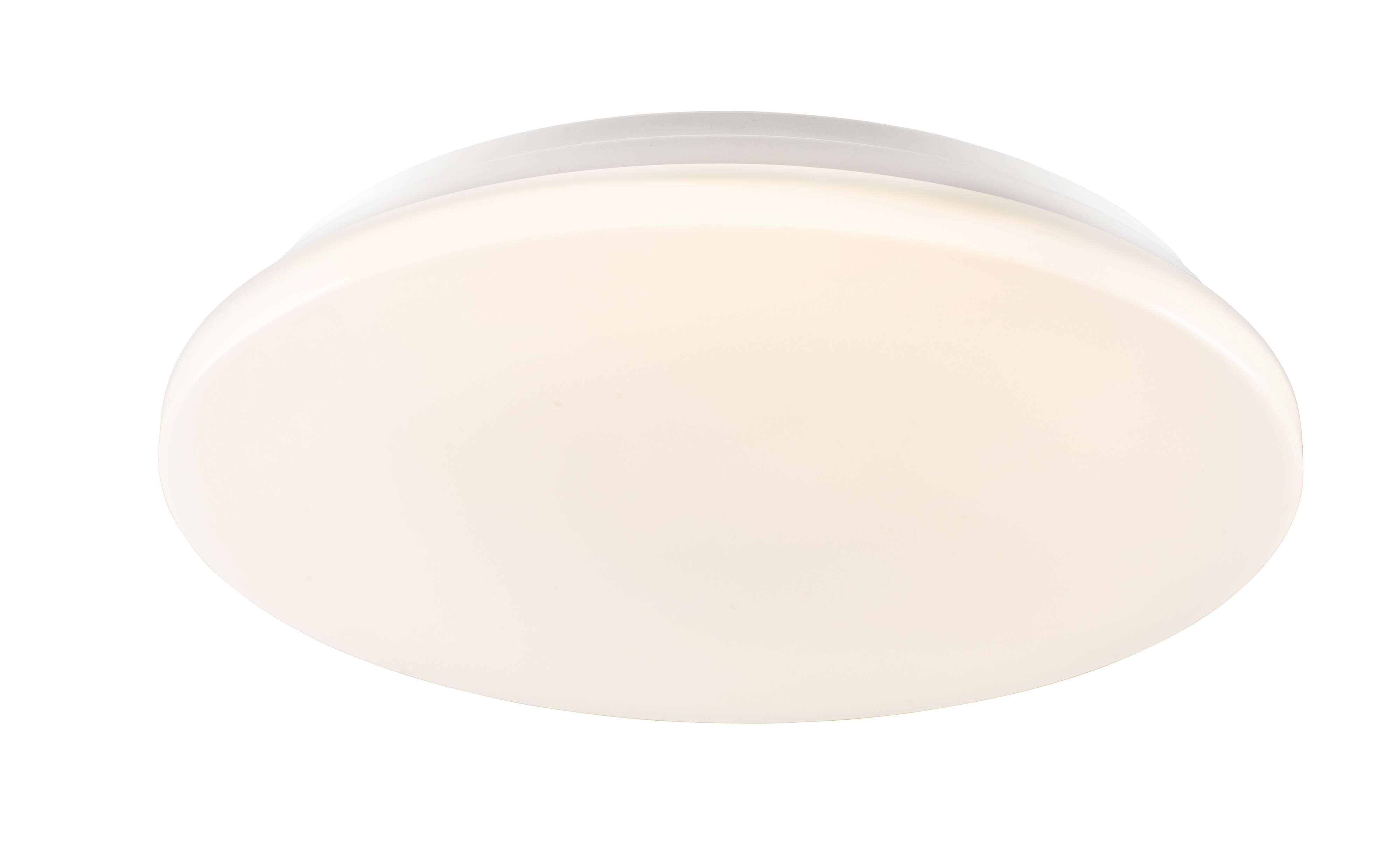

Gaia Slim R Surface mounted luminaire 22W 2700-6500K 1600lm Dim depending on control gear; IP20; IK01; Protection cl. II; L70B50 30000h; LED not exchangeable; CRI>80; SDCM6; Suitable for through wiring; 3x2.5mm²; Housing Plastic; Colour wh; Cover Plastic, opal; C16 max. 11

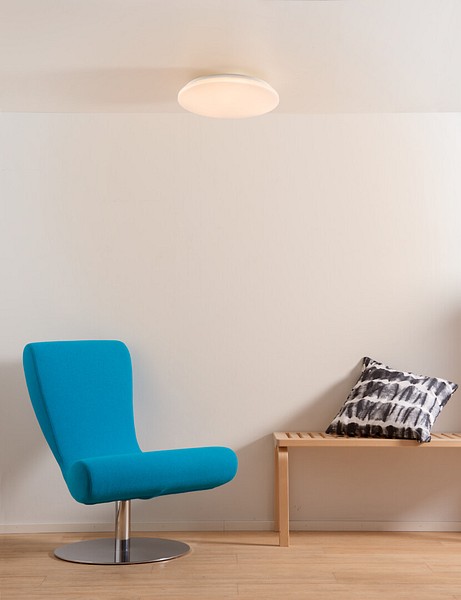

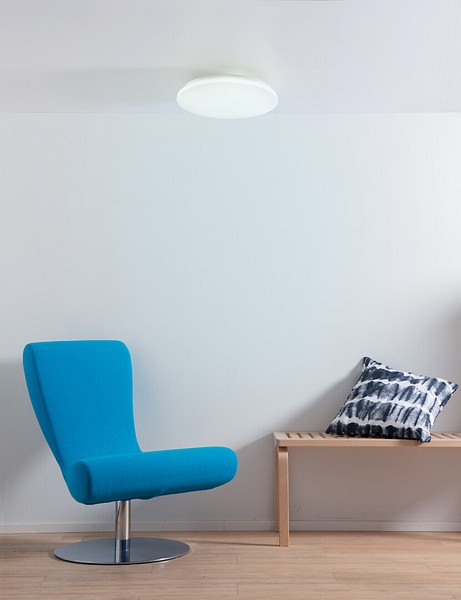

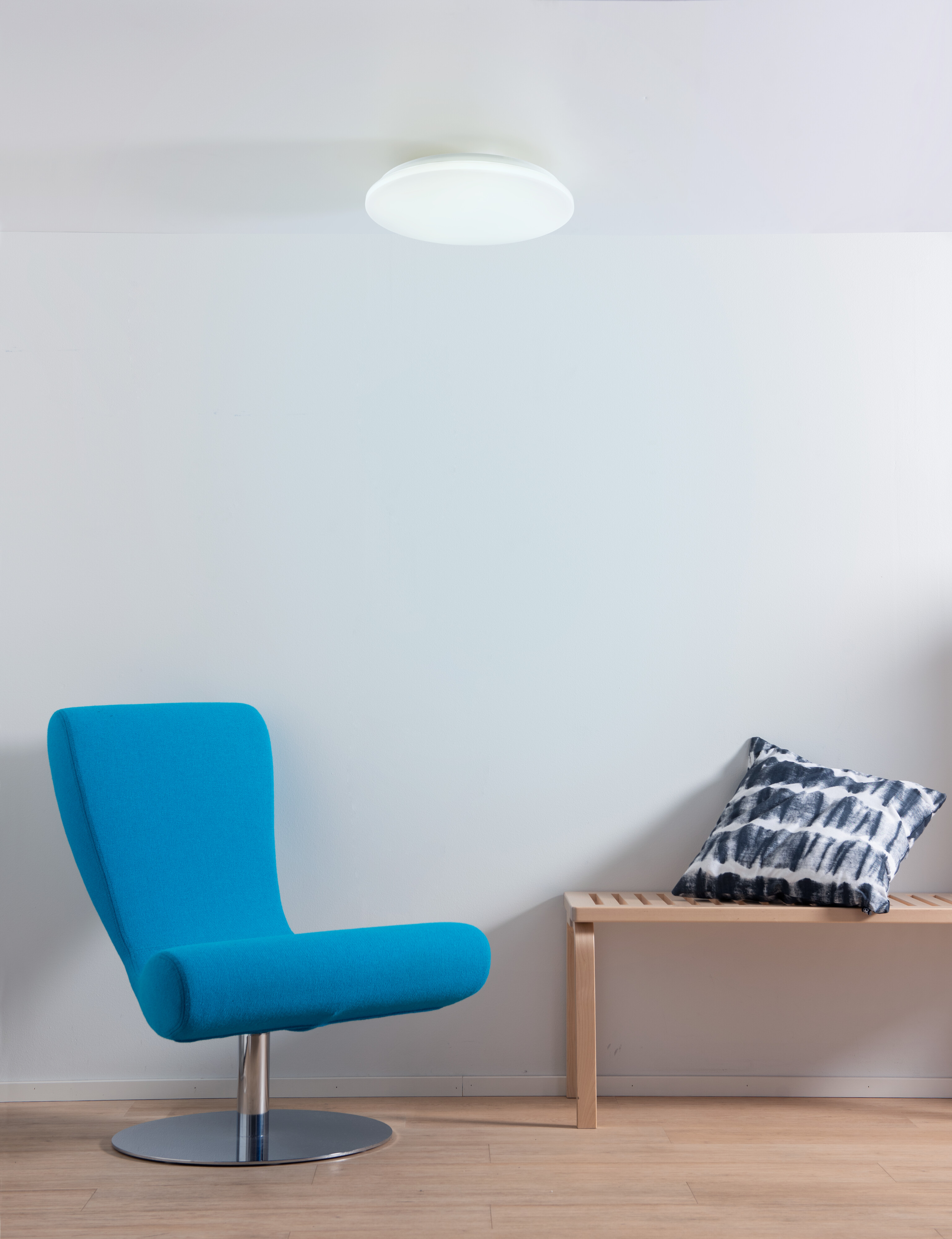

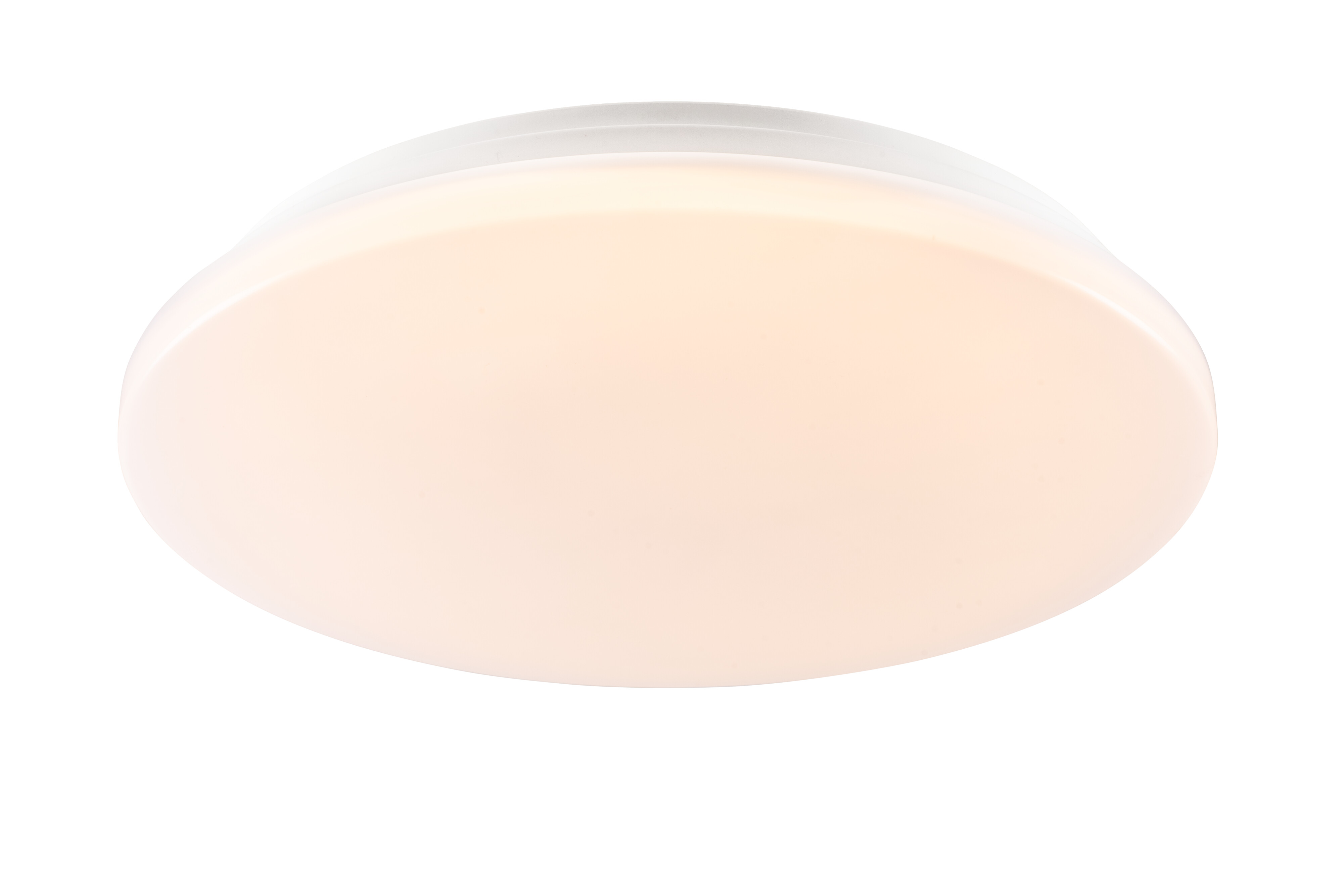

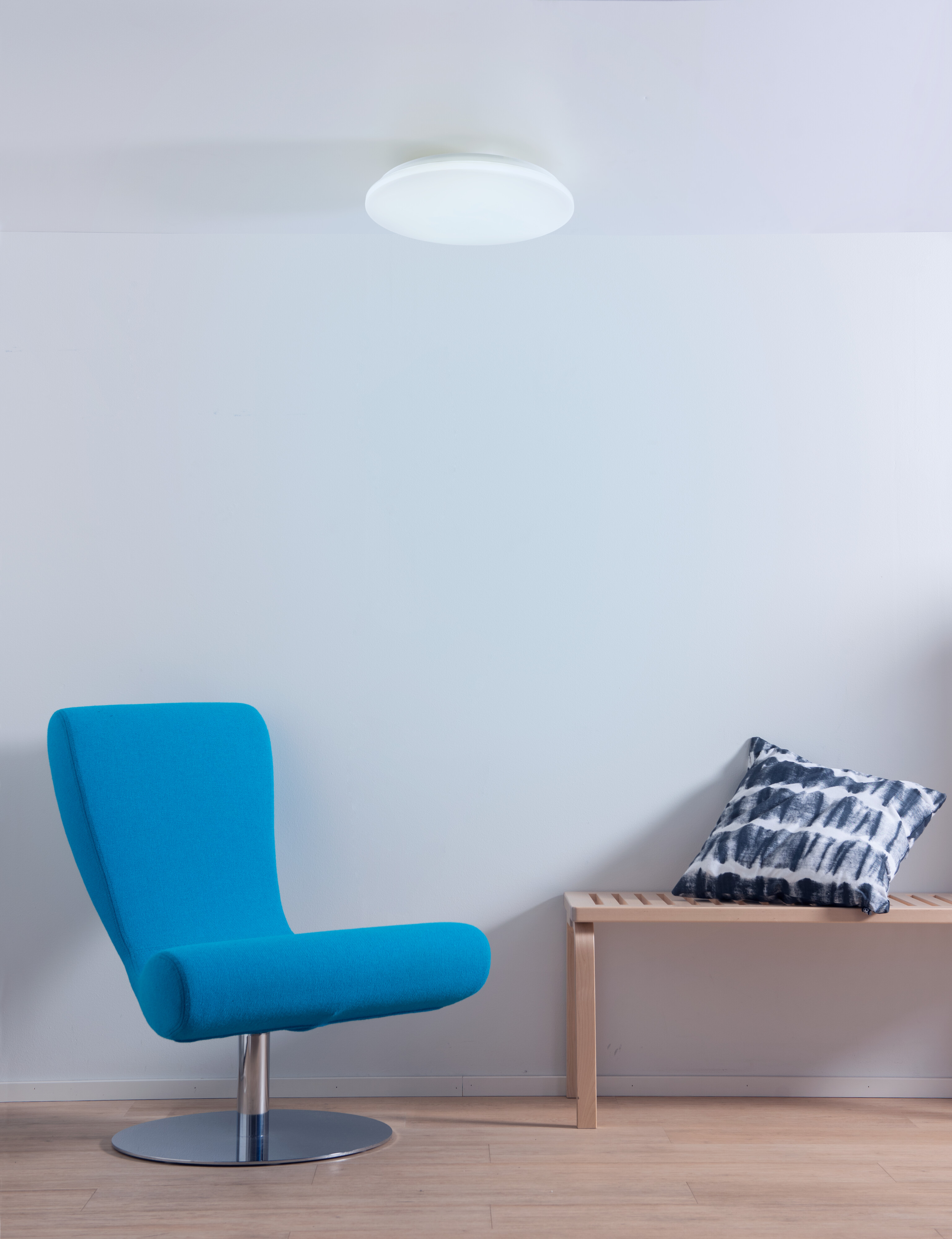

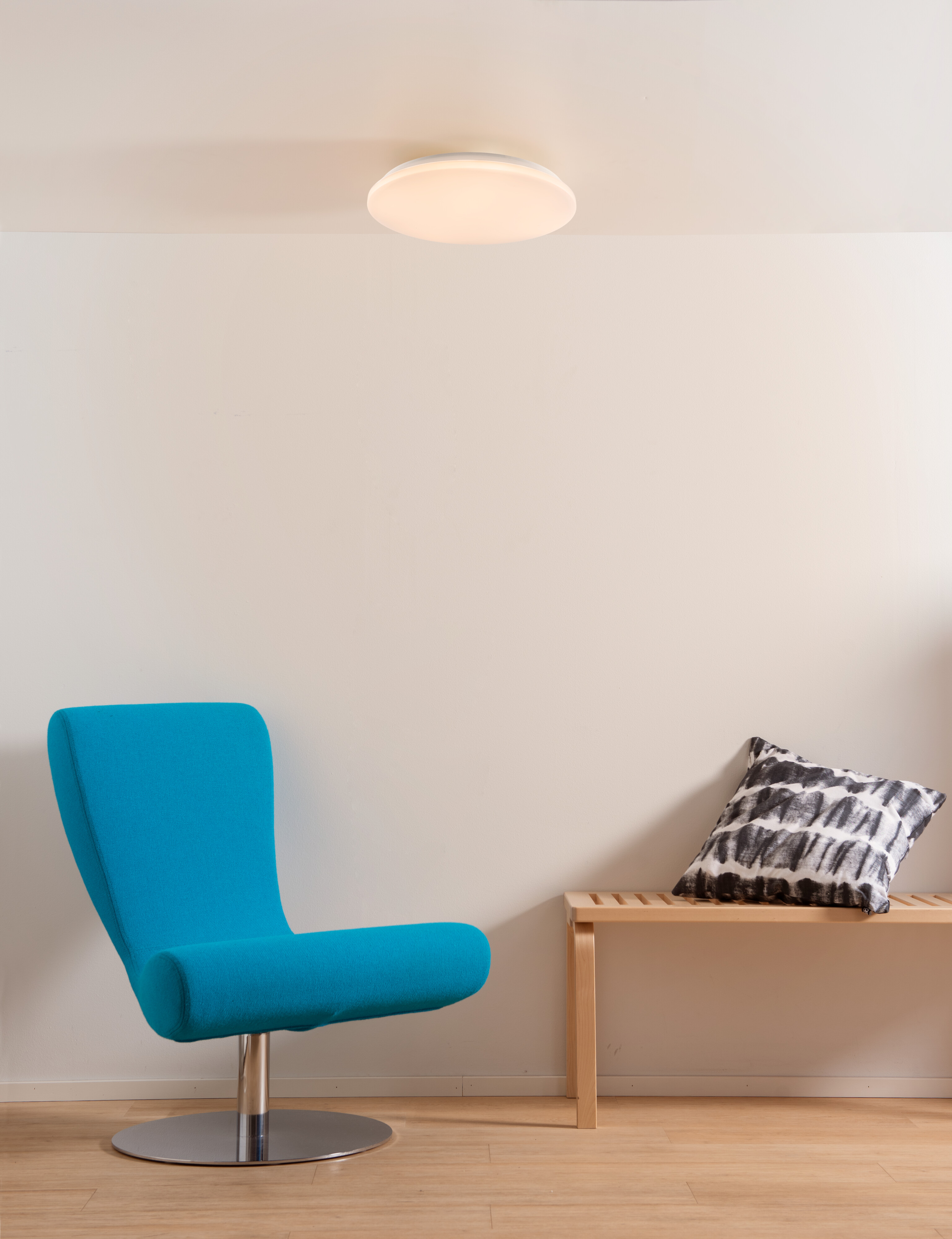

A modern ceiling light with adjustable colour temperature between white and cool white (2700 K – 6500 K). Easy to install directly into a ceiling lamp socket or junction box using the included mounting kit. The Gaia Slim R ceiling light is an excellent choice for general lighting in dry indoor areas such as hallways, living rooms, bedrooms and kitchens.

Code

4245339

  • Three year extended warranty
  • Expert airam 247 support
  • Fast and reliable delivery
Add to favourites Add to favourites

Product Overview

Korpus polükarbonaadist ja kuppel opaalsest akrüülist (ACO).

Värv valge, RAL 9016.

Kaitseklass II.

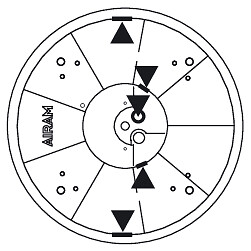

Pinnapealne paigaldus lae valgustipistikupessa või seina- ja laekarpi.

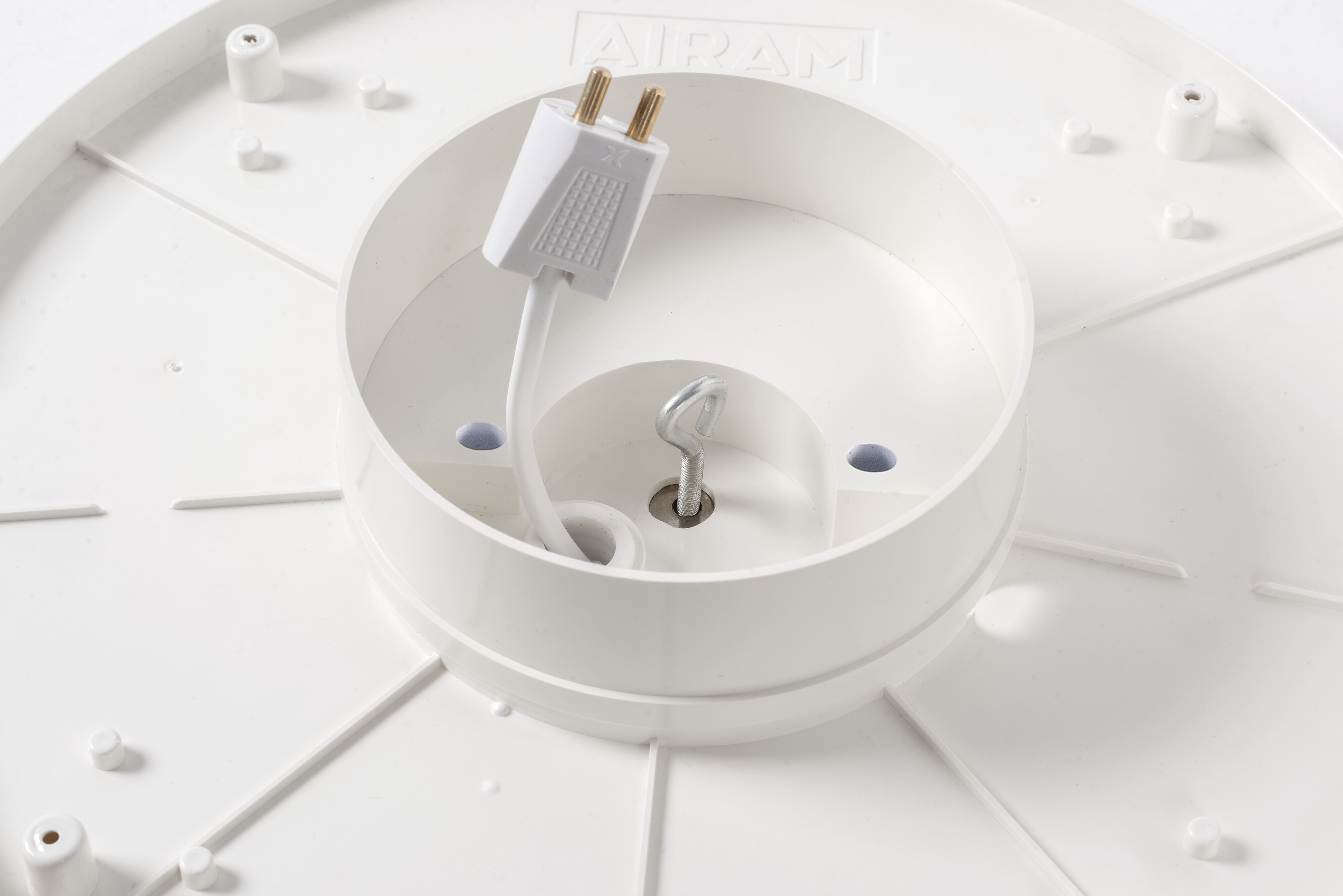

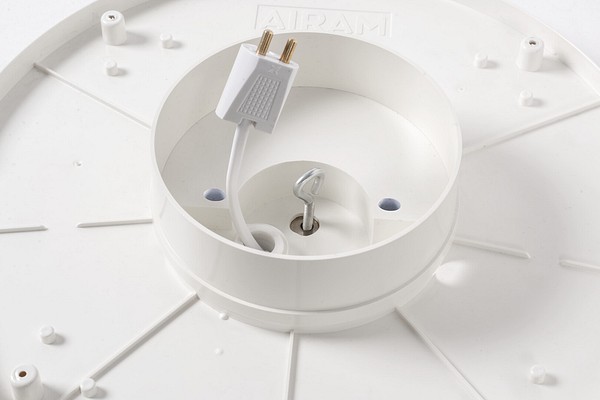

Valgustil on pistik ja riputuskonks. Vedruklemmid 3 × 2,5 mm².

Valguse värvustemperatuur on reguleeritav sujuvalt puldiga, CCT 2700 K – 6500 K. CRI > 80 / Ra > 80.

Kaitseklass IP20.

Integreeritud LED, 22 W 1600 lm.

MacAdam 6 SDCM.

Hämardamine 10%–100% reguleeritav puldiga sujuvalt.

Töötemperatuur 0 … 25 °C.

Kasutusiga L70 30 000 h (Ta25°).

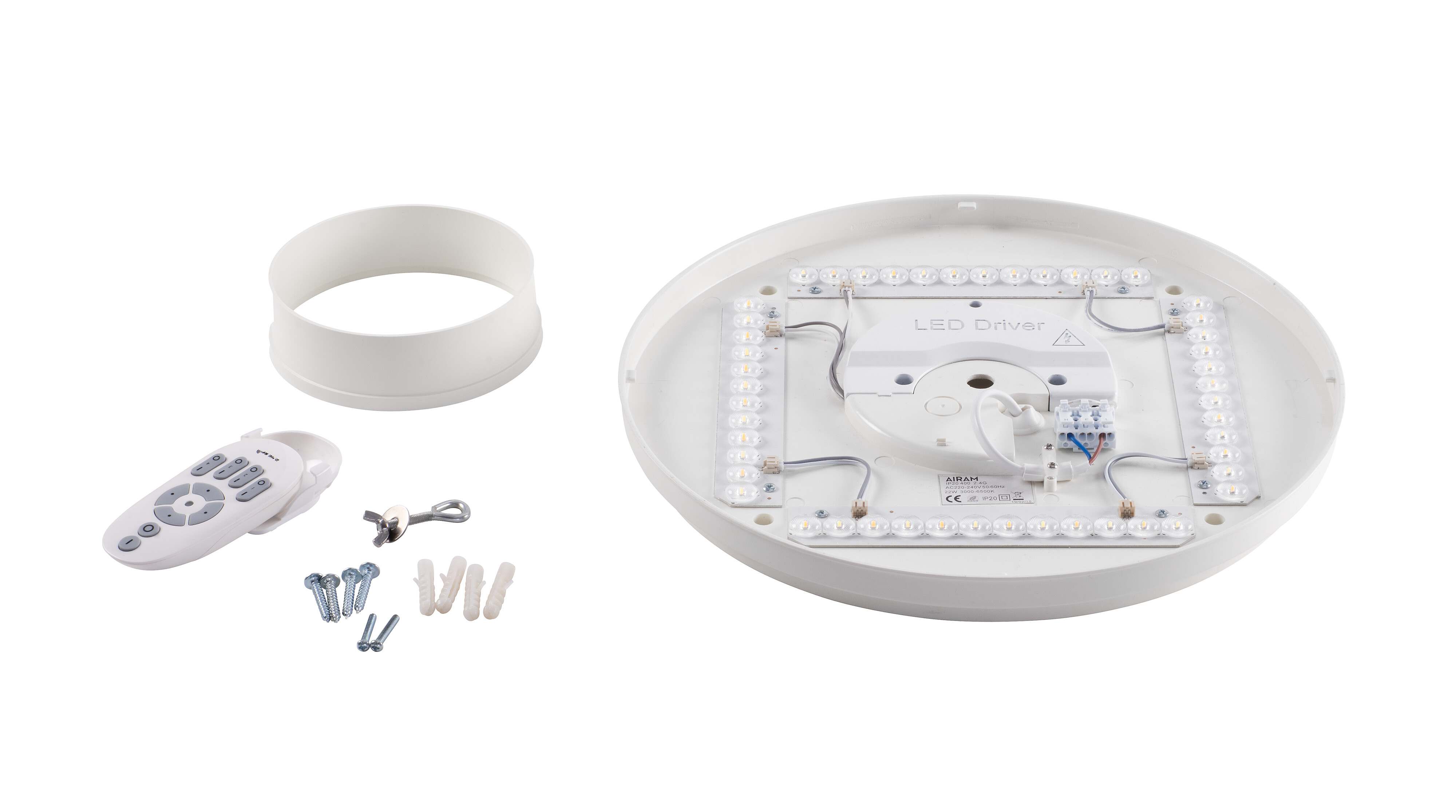

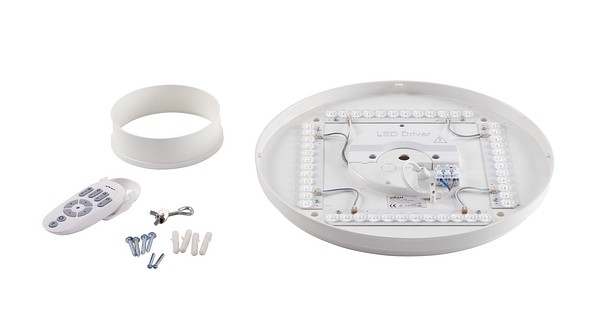

Paigaldustarvikud kuuluvad komplekti.

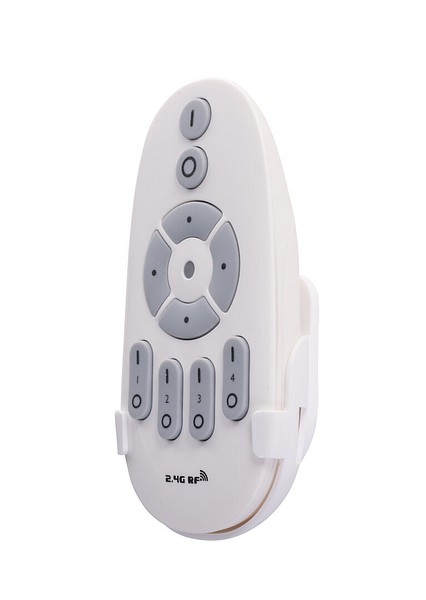

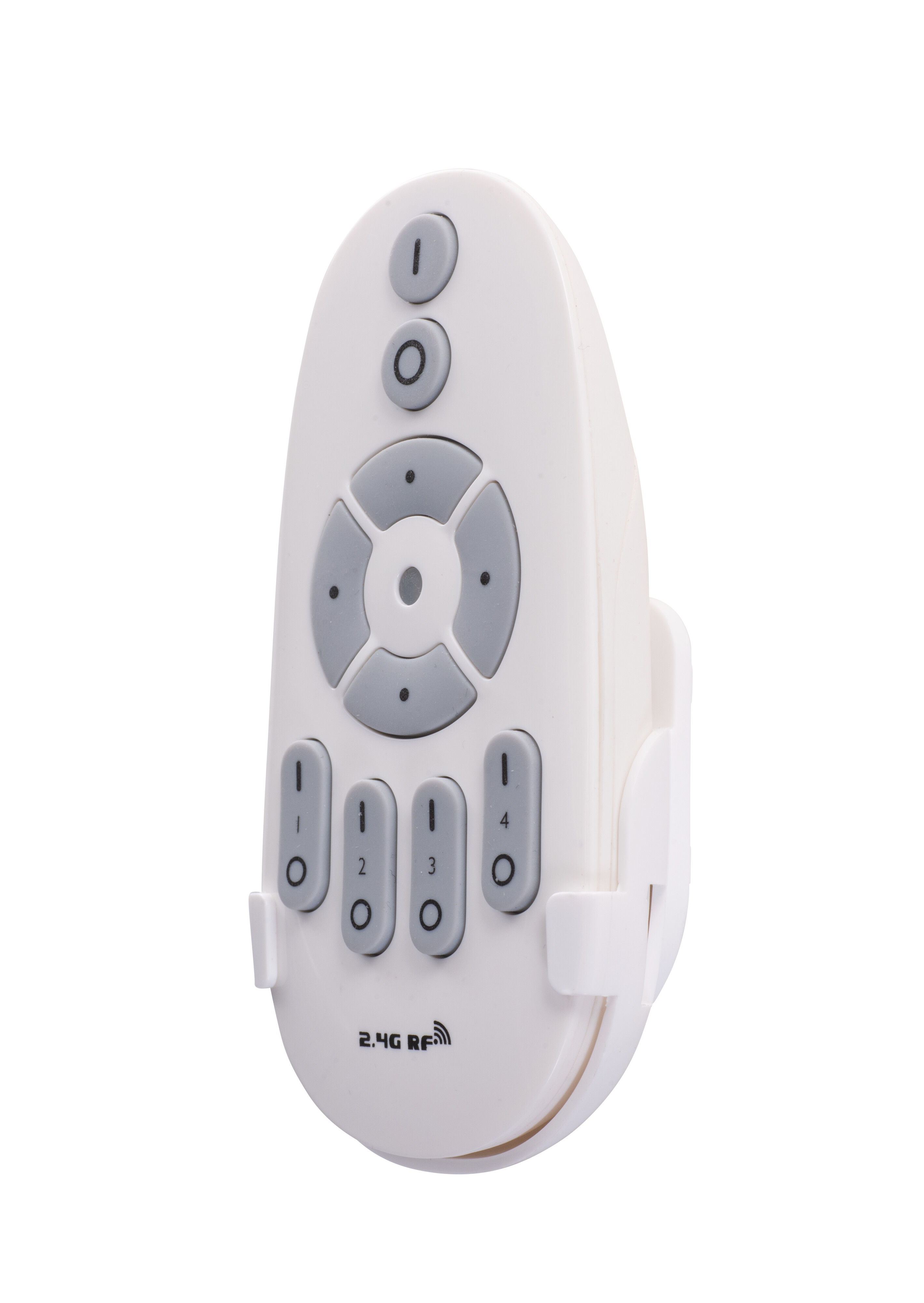

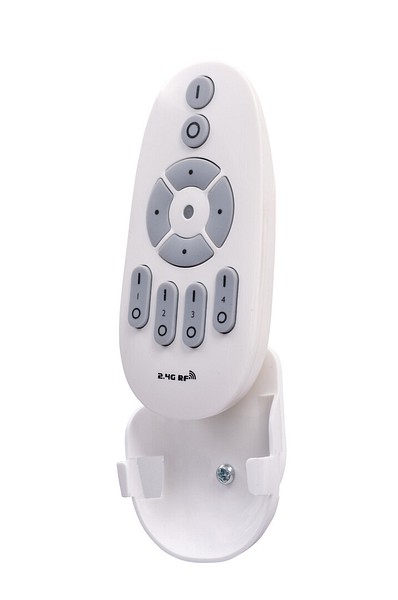

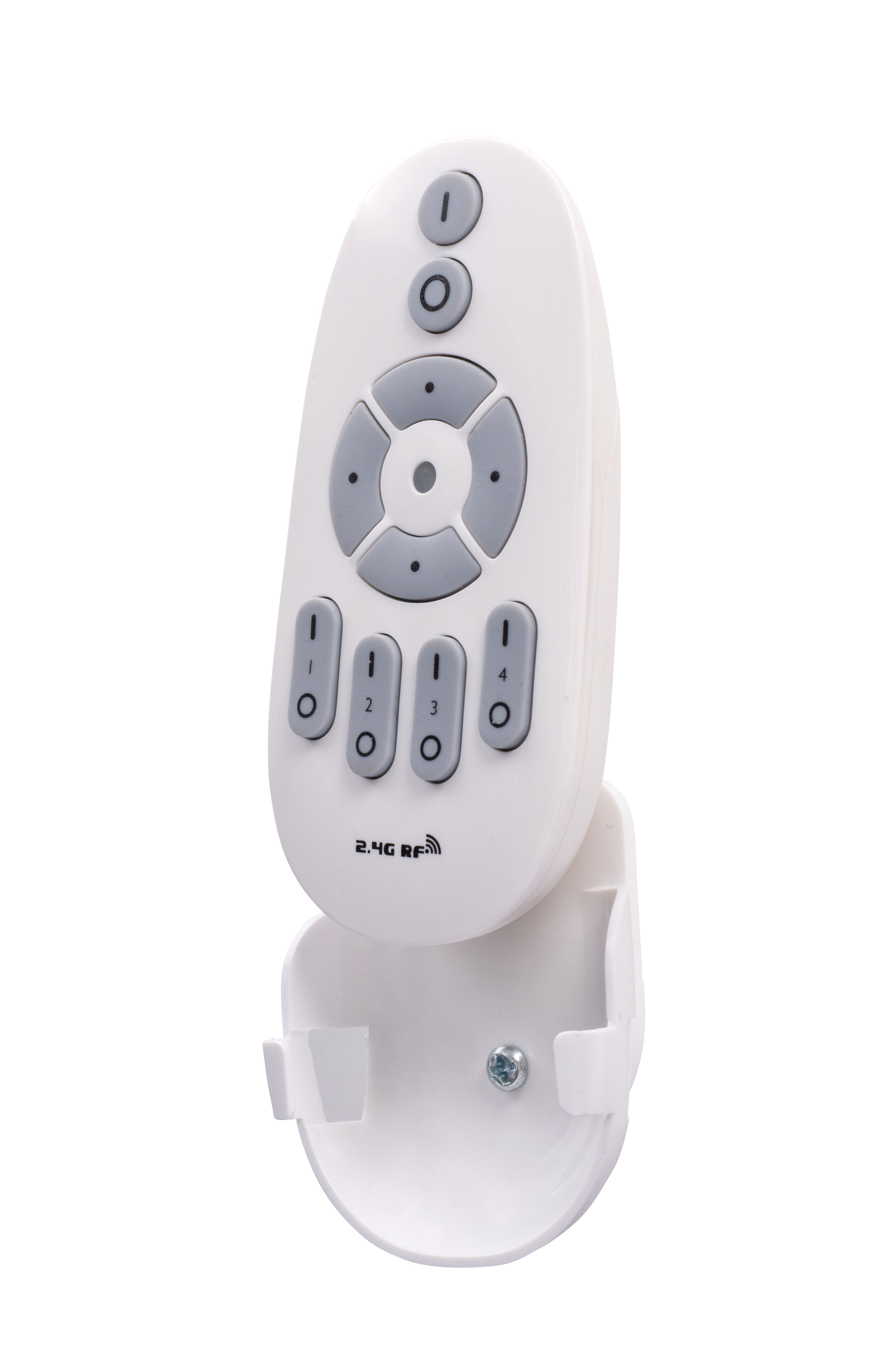

Pult juhib kuni nelja valgustit ja on mälufunktsiooniga. Patareid 2 × AAA 1,5 V ei kuulu komplekti.

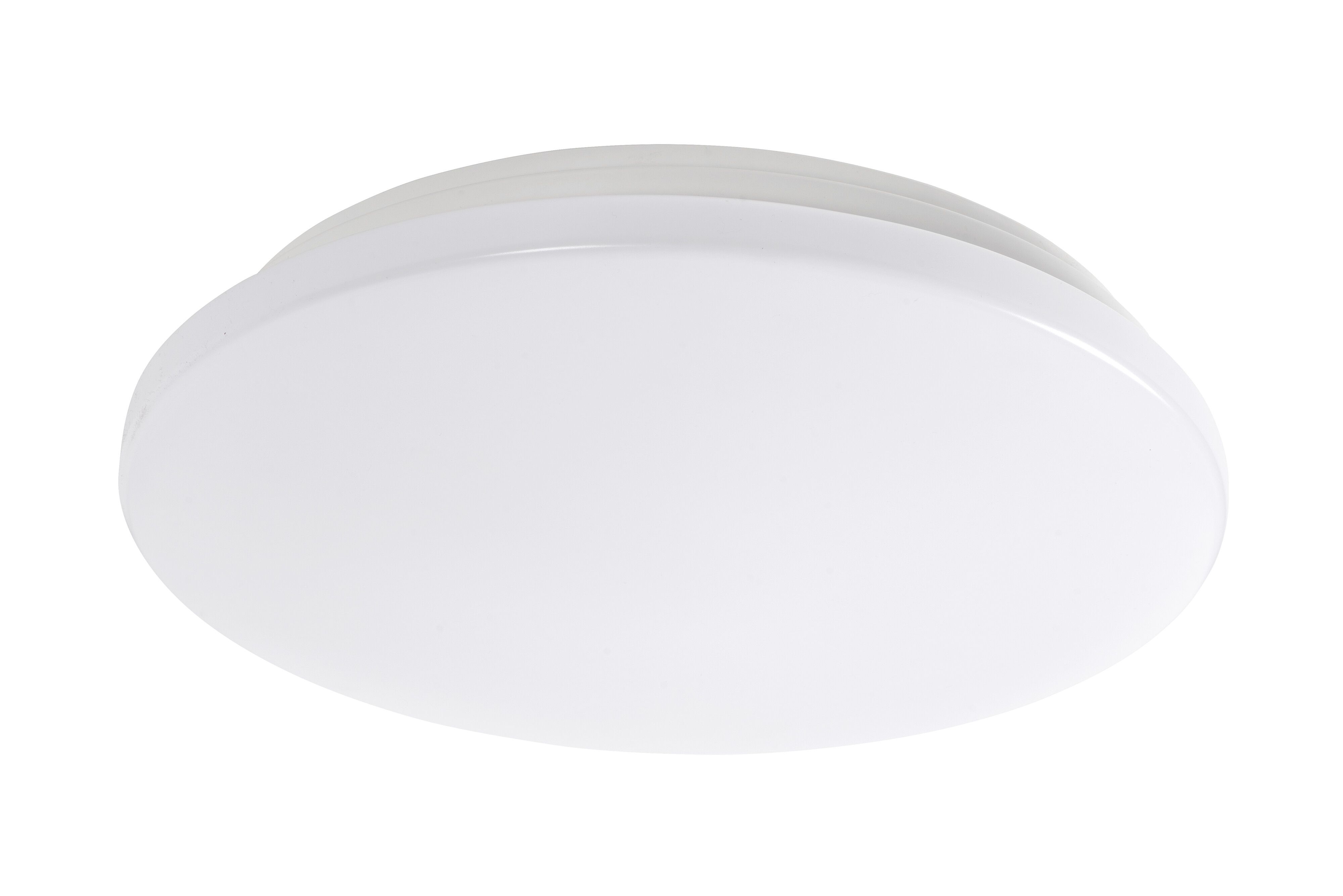

Ümmargune kuju, läbimõõt Ø 400 mm.

Technical details

Codes and names
Airam code
A2GASLA
GTIN
6435200258649
General name
Surface mounted luminaire
Product family
Gaia Slim R
Technical name
400 IP20 22W/827-865 ACO WH
Mounting
Suitable for wall mounting
Yes
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for recessed mounting
No
Suitable for surface mounting
Yes
Suitable for light line configuration
No
Fit for workplace acc. EN 12464-1
No
Max. number of luminaires per miniature circuit breaker B16
11
Max. number of luminaires per miniature circuit breaker C16
11
Suitable for emergency lighting
No
Type of wiring
Suitable for through wiring
Number of poles
3
Conductor cross section (mm²)
2,50
Connection type
Screwless terminal
Structure
Lamp type
LED not exchangeable
Light source included
Yes
Suitable for number of lamps
1
Lamp holder
Other
Housing material
Plastic
Housing surface protection
Plastic-coated
Housing colour
White
Cover material
Plastic, opal
Type of grid
White
Control gear included
Yes
Exchangeable control gear
Yes
Energy efficiency class of light source according to EU regulation 2019/2015
G
Emergency power supply integrated
No
With air slots
No
Electrotechnical data
Voltage type
AC
Nominal voltage (min) (V)
220
Nominal voltage (max) (V)
240
Nominal current (min) (mA)
550
Nominal current (max) (mA)
550
Type of control gear
LED operating device current-controlled
Suitable for lamp power (min) (W)
22
Suitable for lamp power (max) (W)
22
Maximum system power (W)
22
Luminaire efficacy (lm/W)
70
Power factor
0,90
Total harmonic distortion
20
Dimming and control
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DALI-2
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming leading edge
No
Dimming programmable
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Zigbee
No
Dimming with push-button
No
No dimming function
No
With movement sensor
No
Constant luminous flux control
No
Bluetooth operated
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Photometric data
Light distributor
None
Light sharing
Symmetric
Beam angle
Open beam
Colour consistency (McAdam ellipse)
SDCM6
Light outlet
Direct
Colour of light (alphanumeric)
White
Effective luminous flux (lm)
1600
Colour temperature (min) (K)
2700
Colour temperature (max) (K)
6500
Flickering value Pst LM
1
Stroboscope effect value SVM
0,40
Photobiological safety according to EN 62471
RG0
Colour temperature switchable
Continuously variable
Lumen setting adjustable
Continuously variable
Beam angle adjustable
No
Lifetime and capacity
Rated life time L70/B50 at 25 °C (h)
30000
Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
0
Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
25

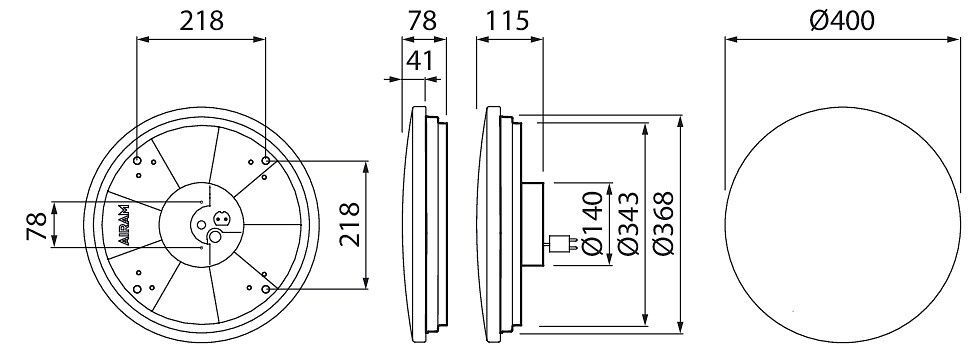

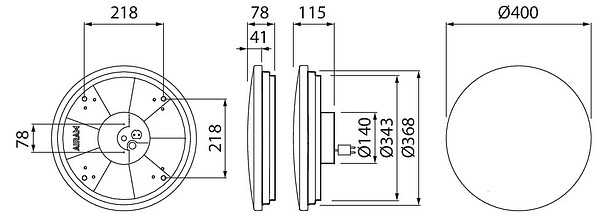

Measurements
Width (mm)
400
Height/depth (mm)
76
Length (mm)
400
Outer diameter (mm)
400
