Greta Mini IP65 14W/840 BK H1100

Greta Mini Bollard luminaire 14W 4000K 500lm IP65; IK08; Protection cl. I; L70B50 100000h; LED not exchangeable; CRI>80; Ending; 3x2.5mm²; Housing al; Colour bk; Cover Plastic matt/satinised; C16 max. 122

An aluminium bollard luminaire for outdoor use. With its narrow housing, Greta Mini is ideal, for example, for the yards of residential buildings. The bollard luminaires, which are equipped with an efficient integrated LED, distribute light in four directions. Available in two colour temperatures. A model with an E27 fitting is also available. Read also about Airam’s extensive selection of lamps. High-quality surface treatment, stainless steel screws.

Code

4512248

  • Three year extended warranty
  • Expert airam 247 support
  • Fast and reliable delivery
Add to favourites Add to favourites

Product Overview

Aluminium housing and frosted polycarbonate diffuser (PCFR).

Anthracite, silver, black and white.

Protection class I.

Not linkable, 3 x 2.5 mm2.

Installation: 1. Bolt fastening directly to a concrete slab. 2. Using ground support MTS-2N (4146704) together with ground support P (4107104) or or 3. Ground support MTS-2N (4146704) with a 60 mm concrete base on soft ground.

Integrated LED 14 W / 500 lm.

Colour temperatures 3,000 K and 4,000 K. CRI > 80 / Ra > 80.

E27 models LED lamp max 11 W, not included.

Lamp recommendations: Airam Frost led -range.

IP65.

IK08.

On/off.

Ambient temperature range -25 … 35 °C

Rated lifetime L70 100,000 h (Ta25°C).

Power source service life 50,000 h.

AN = anthracite, SI = silver, BK = black, WH = white, FR = frosted diffuser.

Technical details

Codes and names
Airam code
B5GMCB
GTIN
6435200224293
General name
Bollard luminaire
Product family
Greta Mini
Technical name
IP65 14W/840 PCFR BK H1100
Structure
With base plate
Yes
Lamp type
LED not exchangeable
Light source included
Yes
Suitable for number of lamps
1
Lamp holder
Other
Housing material
Aluminium
Material quality housing material
Other
Surface protection
Powder coating
Housing colour
Black
Cover material
Plastic matt/satinized
Control gear included
Yes
Exchangeable control gear
Yes
Containing product according to 2019/2020/EU
Yes
Energy efficiency class of light source according to EU regulation 2019/2015
Not required
Mounting
Type of luminaire
Bollard luminaire
Type of wiring
Ending
Number of poles
3
Conductor cross section (mm²)
2,50
Max. number of luminaires per miniature circuit breaker B16
81
Max. number of luminaires per miniature circuit breaker C16
122
Connection type
Screwed terminal
Connectable conductor cross section (min) (mm²)
1,50
Connectable conductor cross section (max) (mm²)
2,50
Dimming and control
With movement sensor
No
Constant luminous flux control
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Electrotechnical data
Voltage type
AC
Nominal voltage (min) (V)
220
Nominal voltage (max) (V)
240
Type of control gear
LED operating device current-controlled
Suitable for lamp power (min) (W)
14
Suitable for lamp power (max) (W)
14
Maximum system power (W)
14
Luminaire efficacy (lm/W)
36
Power factor
0,90

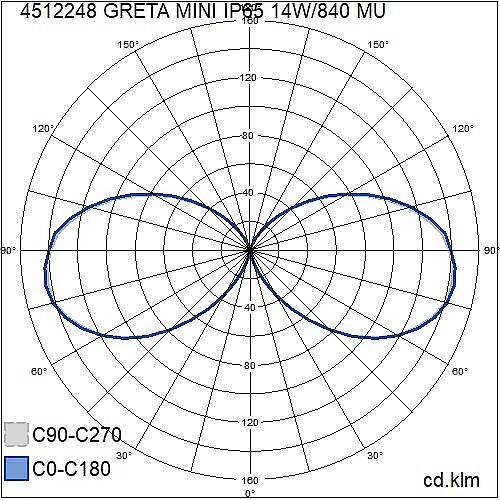

Photometric data
Light distributor
Diffuser lens/optic/panel
Light sharing
Symmetric
Light outlet
Direct
Effective luminous flux (lm)
500
Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
500
Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
500
Beam angle
Extreme wide beam >80°
Colour of light (alphanumeric)
White
Colour temperature (min) (K)
4000
Colour temperature (max) (K)
4000
Flickering value Pst LM
1
Stroboscope effect value SVM
0,40
Colour temperature switchable
No
Lumen setting adjustable
No
Beam angle adjustable
No
Lifetime and capacity
Rated life time L70/B50 at 25 °C (h)
100000
Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
95
Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq)
90
Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
5
Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq)
10
Measurements
Width (mm)
130
Height/depth (mm)
1100
Length (mm)
130
Diameter (mm)
130

Accessories

GROUND SUPPORT ROUND

Ground support MTS-2N
