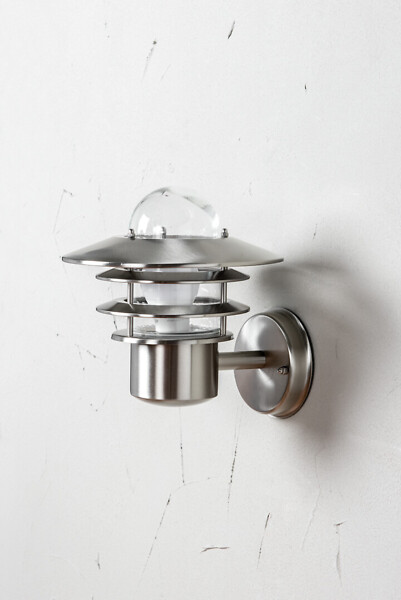

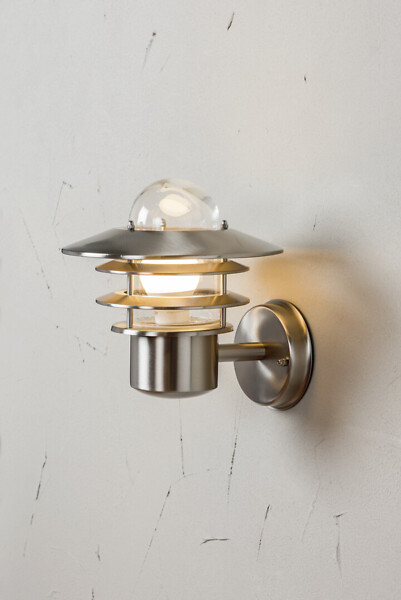

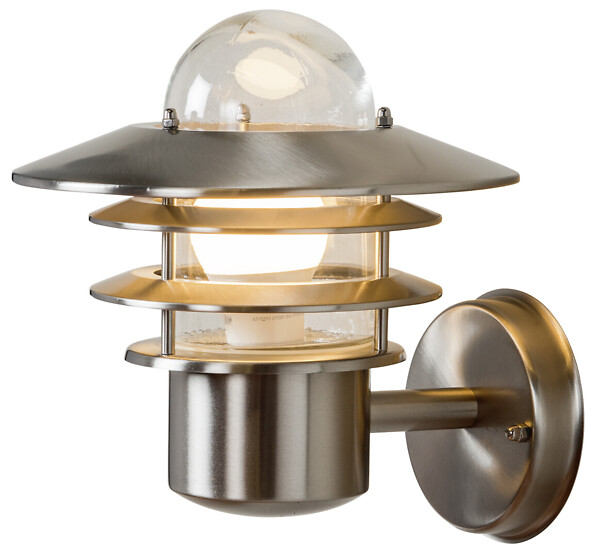

Käpylä IP44 E27 RST

Käpylä Outdoors wall luminaire No dim; IP44; IK02; Protection cl. I; LED exchangeable; Ending; 3x2.5mm²; Housing st; Colour st; Cover Glass transparent

The Käpylä luminaires are timeless classics for Nordic yards. Choose the body in a colour that matches your house: steel, white or black. The glass dome protects the bulb and lets the light shine freely both upwards and downwards through the body's steel rings. Bulb choice has a significant impact on mood and luminosity. Use the Käplyä Mini together with Käpylä bollards to create a unified look.

Code

4107082

  • Three year extended warranty
  • Expert airam 247 support
  • Fast and reliable delivery
Add to favourites Add to favourites

Product Overview

Steel body, clear glass.

Body colors: Steel; white, RAL9010 and black, RAL9011.

Wall surface mount.

Screw connectors 3 x 2,5 mm2, one cable entry, cannot be chained together.

LED-lamp E27 max. 11W, not included.

Enclosure class IP44.

Ambient temperature range -20 … 25 °C, depending on the bulb.

Lamp recommendations: Airam Frost led -range.

Technical details

Codes and names
Airam code
A1UAAB
GTIN
6435200128164
General name
Outdoors wall luminaire
Product family
Käpylä
Technical name
IP44 E27 GLC RST
Mounting
Suitable for wall mounting
Yes
Suitable for suspended mounting
No
Suitable for ceiling mounting
No
Suitable for recessed mounting
No
Suitable for surface mounting
Yes
Suitable for light line configuration
No
Suitable for clamp-mounting
No
Fit for workplace acc. EN 12464-1
No
Degree of protection (IP), rear side
IP44
Degree of protection (IP), front side
IP44
Suitable for emergency lighting
No
Type of wiring
Ending
Number of poles
3
Conductor cross section (mm²)
2,50
Connection type
Screwed terminal
Structure
With mounting material
Yes
Lamp type
LED exchangeable
Light source included
No
Suitable for number of lamps
1
Lamp holder
E27
Housing material
Stainless steel
Housing surface protection
Untreated
Housing colour
Stainless steel
Cover material
Glass transparent
Type of grid
None
Control gear included
No
Exchangeable control gear
No
Energy efficiency class of light source according to EU regulation 2019/2015
Not required
Emergency power supply integrated
No
With switch
No
With air slots
No
Electrotechnical data
Voltage type
AC
Nominal voltage (min) (V)
230
Nominal voltage (max) (V)
230
Type of control gear
Not required
Suitable for lamp power (min) (W)
1
Suitable for lamp power (max) (W)
11
Dimming and control
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DALI-2
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming leading edge
No
Dimming programmable
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Zigbee
No
Dimming with push-button
No
No dimming function
Yes
With movement sensor
No
Constant luminous flux control
No
Bluetooth operated
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Photometric data
Light distributor
Other
Light sharing
Symmetric
Beam angle
Open beam
Light outlet
Direct/indirect
Colour temperature switchable
No
Lumen setting adjustable
No
Beam angle adjustable
No
Lifetime and capacity
Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
-20
Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
25
Measurements
Width (mm)
221
Height/depth (mm)
243
Length (mm)
221
Outer diameter (mm)
221
