Noppa Cube
Noppa Cube Number luminaire 12W 4000K 900lm No dim; IP65; IK10; Protection cl. II; L70B50 50000h; LED not exchangeable; CRI>80; SDCM6; Suitable for through wiring; 3x2.5mm²; Housing Plastic; Colour wh; Cover Plastic, opal; C16 max. 17
The Noppa luminaire equipped with a fixed LED is designed for use as the street number indicator for both public properties and residential buildings. It comes with three different diffuser options: low, triangle and cube. Number stickers are not included.
Code
4116175
- Three year extended warranty
- Expert airam 247 support
- Fast and reliable delivery
Add to favourites
Add to favourites
Product Overview
Polycarbonate body and opal polycarbonate diffuser.
White, RAL 9016.
Protection class II.
Surface mounting on a wall or ceiling.
Linkable, 3 x 2.5 mm2, spring terminal blocks.
Installation height 2–5 m.
Colour temperature 4,000 K. CRI > 80 / Ra > 80.
MacAdam 6 SDCM.
IP65.
IK10.
Fixed LED 12W / 900 lm.
On/off.
Ambient temperature range -20 … 25 °C.
Rated lifetime L70 50,000 h (Ta25°C).
Technical details
Codes and names
Airam code
A1NOAC
GTIN
6435200200969
General name
Number luminaire
Product family
Noppa Cube
Technical name
IP65 IK10 12W/840 PCO WH Cube
Mounting
Suitable for wall mounting
Yes
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for recessed mounting
No
Suitable for surface mounting
Yes
Suitable for light line configuration
No
Suitable for clamp-mounting
No
Fit for workplace acc. EN 12464-1
No
Degree of protection (IP), rear side
Other
Degree of protection (IP), front side
IP65
Max. number of luminaires per miniature circuit breaker C10 (MCB)
17
Max. number of luminaires per miniature circuit breaker B16
17
Max. number of luminaires per miniature circuit breaker C16
17
Suitable for emergency lighting
No
Emergency function monitoring system
None
Type of wiring
Suitable for through wiring
Number of poles
3
Conductor cross section (mm²)
2,50
Connection type
Screwless terminal
Connectable conductor cross section (min) (mm²)
1,50
Connectable conductor cross section (max) (mm²)
2,50
Structure
With mounting material
Yes
Lamp type
LED not exchangeable
Light source included
Yes
Suitable for number of lamps
1
Lamp holder
Other
Housing material
Plastic
Housing surface protection
Plastic-coated
Housing colour
White
Cover material
Plastic, opal
Type of grid
None
Control gear included
Yes
Exchangeable control gear
Yes
Energy efficiency class of light source according to EU regulation 2019/2015
E
Containing product according to 2019/2020/EU
Yes
Emergency power supply system
None
Emergency power supply integrated
No
With switch
No
With air slots
No
Electrotechnical data
Voltage type
AC
Nominal voltage (min) (V)
220
Nominal voltage (max) (V)
240
Type of control gear
LED operating device current-controlled
Suitable for lamp power (min) (W)
12
Suitable for lamp power (max) (W)
12
Luminaire efficacy (min) (lm/W)
75
Luminaire efficacy (max) (lm/W)
75
Maximum system power (W)
12
Luminaire efficacy (lm/W)
75
Power factor
0,90
Total harmonic distortion (THD) (%)
21
Total harmonic distortion
21
Dimming and control
Dimmable
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DALI-2
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming leading edge
No
Dimming programmable
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Zigbee
No
Dimming with push-button
No
No dimming function
Yes
With presence indicator
No
With movement sensor
No
Constant luminous flux control
No
Bluetooth operated
No
Compatible with Casambi
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Photometric data
Light distributor
Diffuser lens/optic/panel
Light sharing
Symmetric
Beam angle
Open beam
Colour consistency (McAdam ellipse)
SDCM6
Light outlet
Direct
Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
900
Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
900
Colour of light (alphanumeric)
White
Effective luminous flux (lm)
900
Colour temperature (min) (K)
4000
Colour temperature (max) (K)
4000
Flickering value Pst LM
1
Stroboscope effect value SVM
0,40
Photobiological safety according to EN 62471
RG0
Colour temperature switchable
No
Lumen setting adjustable
No
Beam angle adjustable
No
Lifetime and capacity
Rated life time L70/B50 at 25 °C (h)
50000
Rated life time L80/B50 at 25 °C
35000
Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
80
Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
70
Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
5
Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
10
Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
-20
Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
25

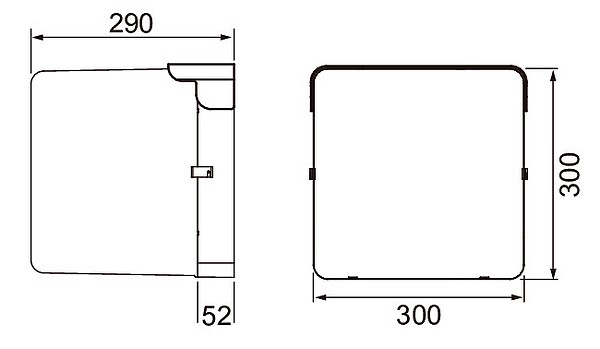

Measurements
Width (mm)
300
Height/depth (mm)
300
Length (mm)
290
