Office P 1245 33W/840 CA AL MA

Office P Suspension luminaire 33W 4000K 4000lm Dim programmable; IP20; IK02; Protection cl. I; L80B10 100000h; LED not exchangeable; Lamp included; CRI>80; SDCM3; Ending; 3x1mm²; Housing Steel; Colour wh; Cover Plastic matt/satinized

The suspension-mounted Office P is an energy-efficient office luminaire range with a downlight. This extensive range offers numerous customisation options. Its optics features include an aluminium parabolic louvre and integrated opal shield, which eliminate glare from the LEDs and achieve a low Unified Glare Rating l/value (UGR <19). The luminaire is delivered with a 2-metre cable. Typical applications include schools, offices and other spaces where computers are used.

Code

a1ofbb-ca

  • Three year extended warranty
  • Expert airam 247 support
  • Fast and reliable delivery
Add to favourites Add to favourites

Product Overview

Steel housing, low-luminance louvre made of anodised aluminium.

White, RAL9003.

Protection class I.

Suspension mounting, 2 meters cabel (1 mm2 MSK), connection via a junction box.

Integrated LED:

1245 mm 33 W 4000 lm / 46 W 5500 lm.

1545 mm 42 W 5000 lm / 58 W 7000 lm.

Colour temperatures 3000 K and 4000 K and Tunable white 2700–6500 K. CRI > 80 / Ra > 80.

MacAdam 3 SDCM.

IP20.

IK02.

On/off, Dali-2, with pushbutton control 230V and CLO-function, Casambi (Bluetooth mesh) and ActiveAhead (with G2 sensor).

Ambient temperature range 0 … 25 °C.

Rated lifetime L80 100 000 h (Ta25°C).

Rated lifetime L90 80 000 h (Ta25°C).

Wire suspension kits 4107113 and 4146595 as accessories.

WH = white, DA2 = Dali-2, CA = Casambi, AA = Helvar ActiveAhead, AL = aluminium, MA = low luminance.

Also available in colour temperatures 2700 K, 5000 K and 6500 K. CRI > 90 available for order. Project-specific luminous flux packages available on request. High-gloss louvre optics are available for the luminaire by special order. Available color options are also grey (RAL 9007) or black. Available with one pull switch, on/off and Dim.

Technical details

Codes and names
Airam code
A1OFBB-CA
GTIN
6435200297051
General name
Suspension luminaire
Product family
Office P
Technical name
1245 33W/840 CA AL MA WH P
Mounting
Fit for workplace acc. EN 12464-1
Yes
Suitable for light line configuration
No
Suitable for emergency lighting
No
Emergency function monitoring system
None
Type of wiring
Ending
Connectable conductor cross section (min) (mm²)
1,50
Connectable conductor cross section (max) (mm²)
2,50
Number of poles
3
Conductor cross section (mm²)
1
Connection type
Other
Structure
Lamp type
LED not exchangeable
Light source included
Yes
Suitable for number of lamps
1
Lamp holder
Other
Housing material
Steel
Housing colour
White
Cover material
Plastic matt/satinized
Type of grid
Matt
Control gear included
Yes
Exchangeable control gear
Yes
Reflector
Matt
Energy efficiency class of light source according to EU regulation 2019/2015
D
Containing product according to 2019/2020/EU
Yes
Emergency power supply integrated
No
Emergency power supply system
None
Suspension supplied with the product
No
Pendant length (min) (mm)
500
Pendant length (max) (mm)
2000
Electrotechnical data
Voltage type
AC
Nominal voltage (min) (V)
220
Nominal voltage (max) (V)
240
Nominal current (min) (mA)
600
Nominal current (max) (mA)
600
Type of control gear
LED operating device current-controlled
Luminaire efficacy (min) (lm/W)
120
Luminaire efficacy (max) (lm/W)
120
Suitable for lamp power (min) (W)
33
Suitable for lamp power (max) (W)
33
Maximum system power (W)
33
Luminaire efficacy (lm/W)
120
Power factor
0,90
Dimming and control
Dimmable
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DALI-2
No
Dimming DMX
No
Dimming DSI
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming leading edge
No
Dimming potentiometer (integrated)
No
Dimming programmable
Yes
Dimming RF
No
Dimming LineSwitch
No
Dimming Sine Wave Reduction
No
Dimming Zigbee
No
Dimming with push-button
No
No dimming function
No
With movement sensor
No
With presence indicator
No
Constant luminous flux control
Yes
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Compatible with Casambi
Yes
IFTTT support available
No
Bluetooth operated
Yes

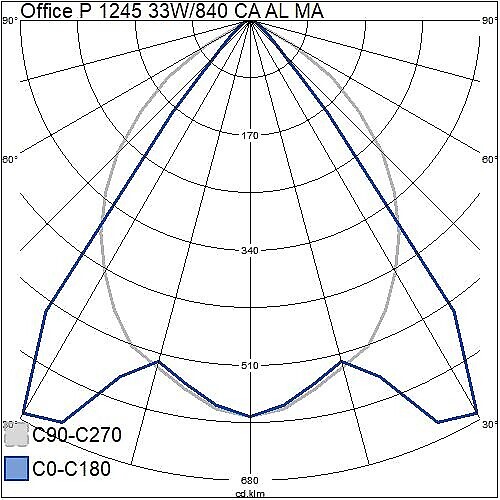

Photometric data
Light distributor
Reflector
Light sharing
Symmetric
Colour consistency (McAdam ellipse)
SDCM3
Light outlet
Direct
Direct-/indirect proportion separately controllabl
No
Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
4000
Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
4000
Effective luminous flux (lm)
4000
Colour of light (alphanumeric)
White
Colour temperature (min) (K)
4000
Colour temperature (max) (K)
4000
Unified Glare Rating (UGR)
19
Flickering value Pst LM
1
Stroboscope effect value SVM
0,40
Colour temperature switchable
No
Lumen setting adjustable
No
Beam angle adjustable
No
Lifetime and capacity
Rated life time L70/B50 at 25 °C (h)
100000
Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
90
Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
5
Measurements
Width (mm)
140
Height/depth (mm)
60
Length (mm)
1245
