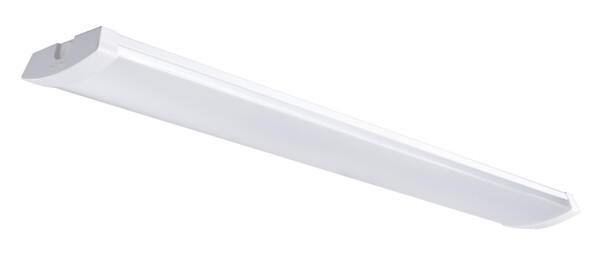

Optimus MP
Optimus MP is an excellent choice when you need a versatile and energy-efficient industrial luminaire. The luminaire has a low profile and a microprism diffuser that provides even light. The luminaire comes with a satin film that reduces glare and provides even light. You can increase the light output by removing the film. Optimus MP is suitable for industrial spaces, commercial buildings, warehouses, parking garages, carports, hallways and damp areas. The series has three different lengths and the power can be changed between four different options. The luminaire has an excellent lumen/watt ratio and lifespan.
Product Overview
Housing made of steel and micro-prismatic diffuser of acrylic (ACMP).
White.
Protection class I.
Surface mounting, suspension mounting with accessories.
Throughwired 5 x 2,5 mm2: On/off, Radar M/S, Dali, Casambi (Bluetooth mesh) and ActiveAhead (G2 sensor).
Radar M/S 1200 mm can be chained with a maximum of seven slave luminaires.
Radar M/S 1500 mm can be chained with a maximum of five slave luminaires.
PIR M/S can be chained with a maximum of nine slave luminaires.
Power of on/off, Radar and Pir models adjustable from the luminaire:
600 mm: 11 W / 1400 lm, 13 W / 1700 lm, 16 W / 2000 lm, 20 W / 2600 lm.
1200 mm: 23 W / 3200 lm, 29 W / 4000 lm, 35 W / 4900 lm, 40 W / 5600 lm.
1500 mm: 26 W / 3600 lm, 33 W / 4600 lm, 40 W / 5600 lm, 47 W / 6600 lm.
Power of Dali models adjustable from the luminaire:
600 mm: 11 W / 1430 lm, 20 W / 2600 lm.
1200 mm: 23 W / 3200 lm, 40 W / 5600 lm.
1500 mm: 26 W / 3600 lm, 47 W / 6600 lm.
By removing the satin film from the luminaire, the luminous flux increases by approximately 14 %.
Mounting height 2–6 m.
CCT changeable from luminaire 3000 – 4000 K. CRI > 80 / Ra > 80.
IP44.
IK07.
MacAdam 3 SDCM.
On/off, Dali-2 with direct push button control (230V), Casambi, and ActiveAhead.
The maximum number of luminaires used in direct push button control in one group is 20 pcs.
Operating environment temperature -20 … 40 °C.
Service life L70 > 100,000 h (Ta25°C).
Service life L80 100,000 h (Ta25°C).
