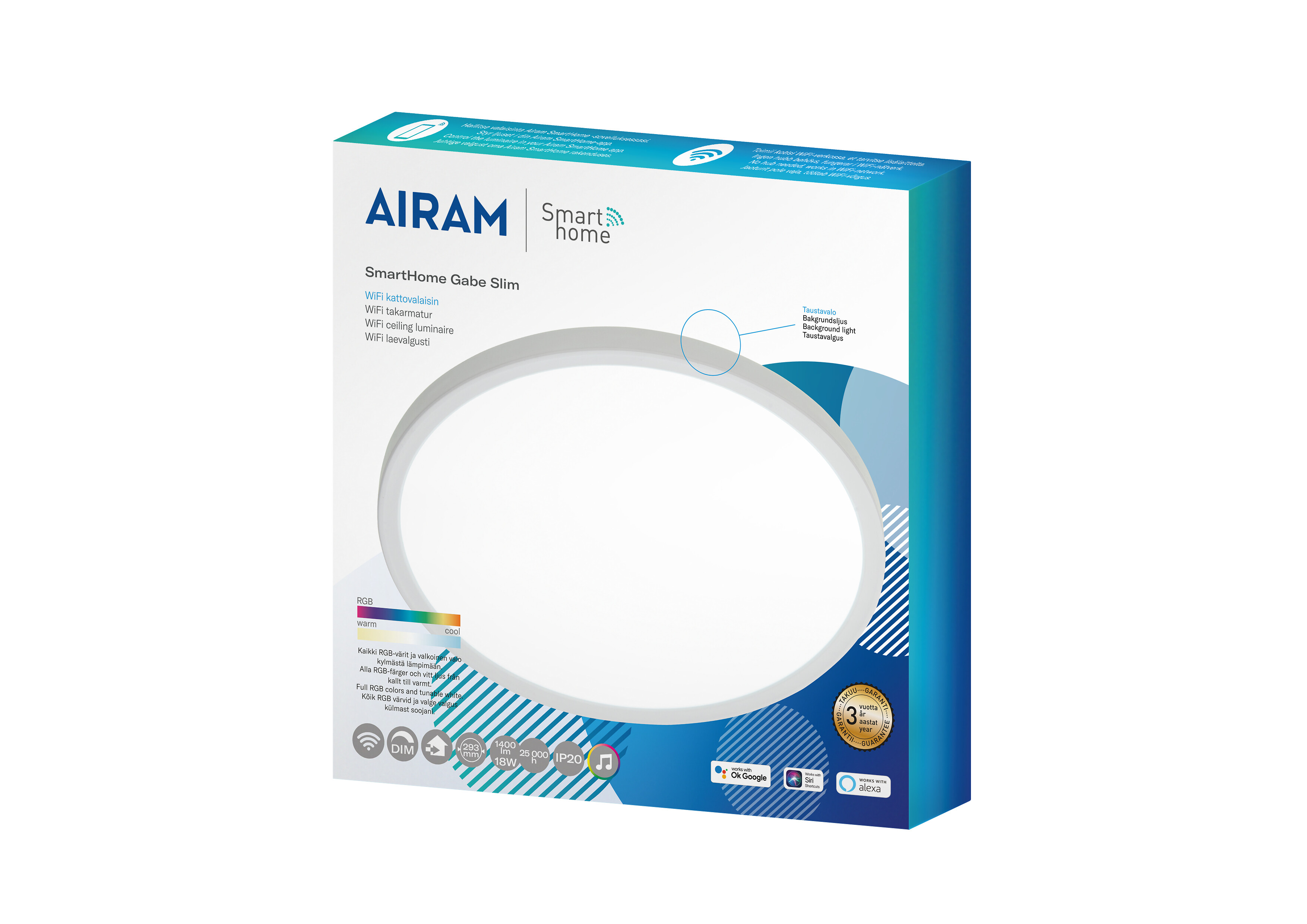

Smart Gabe Slim 18W/827-865 WH

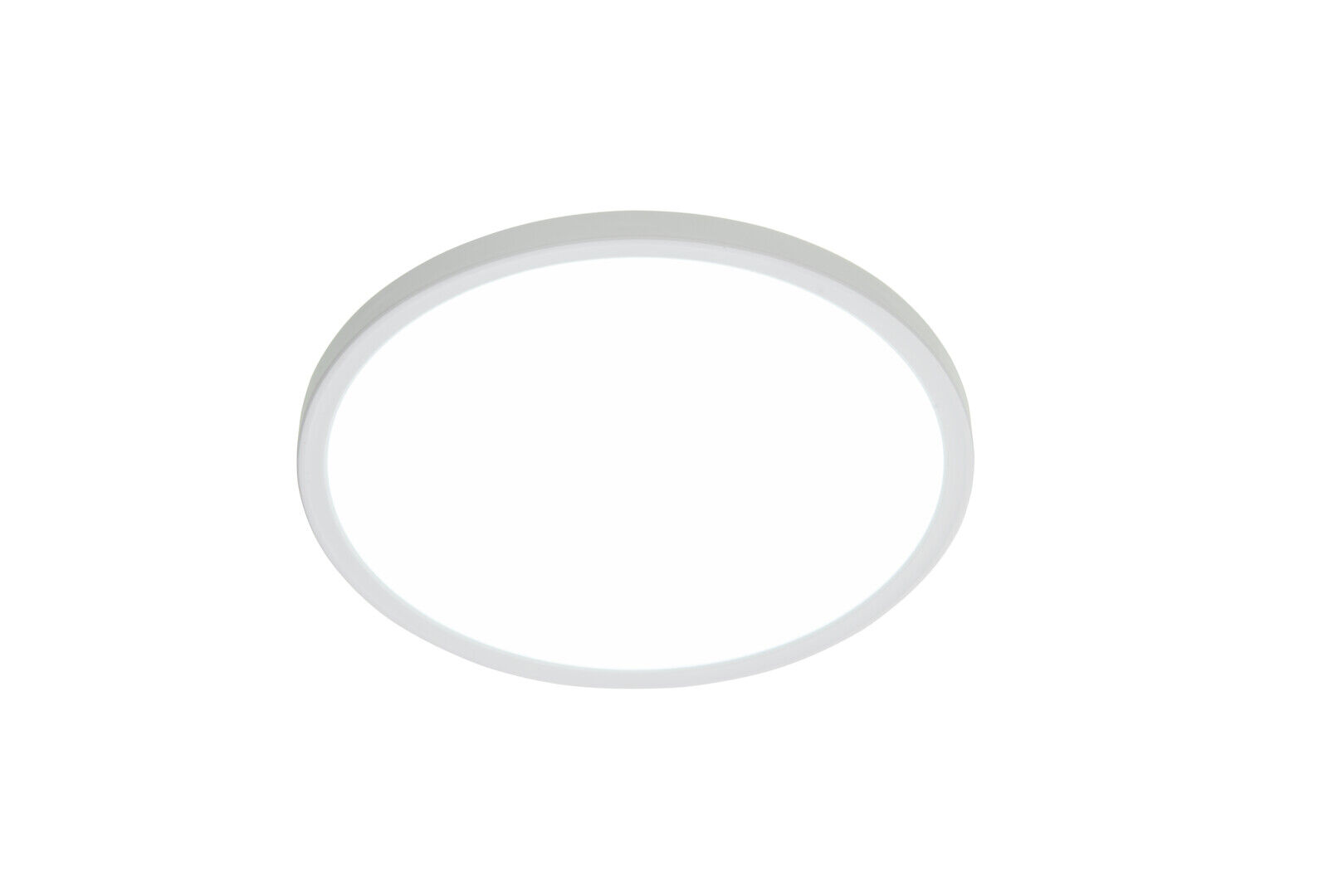

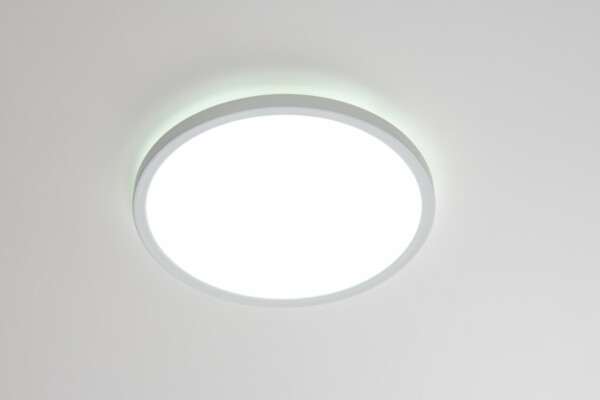

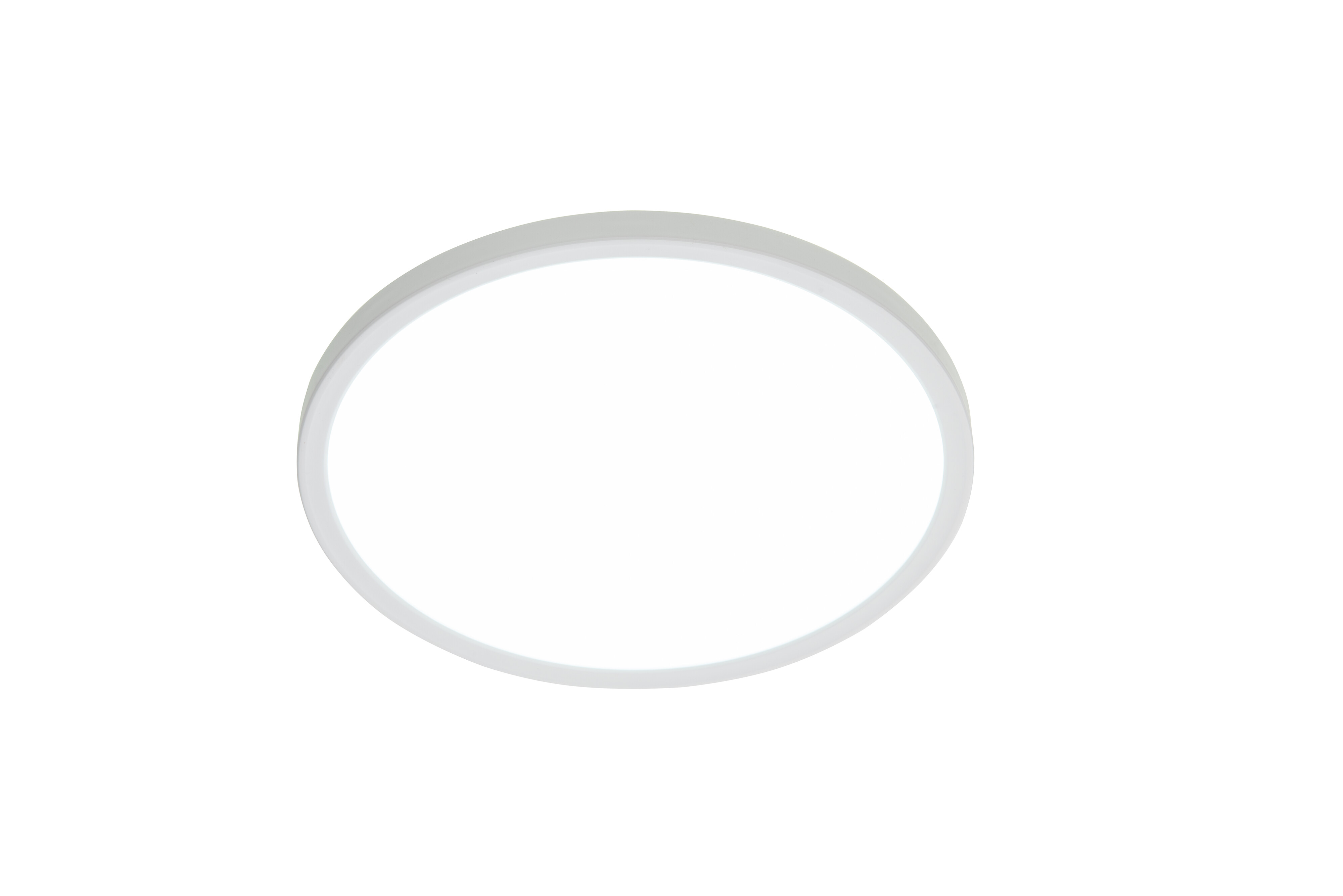

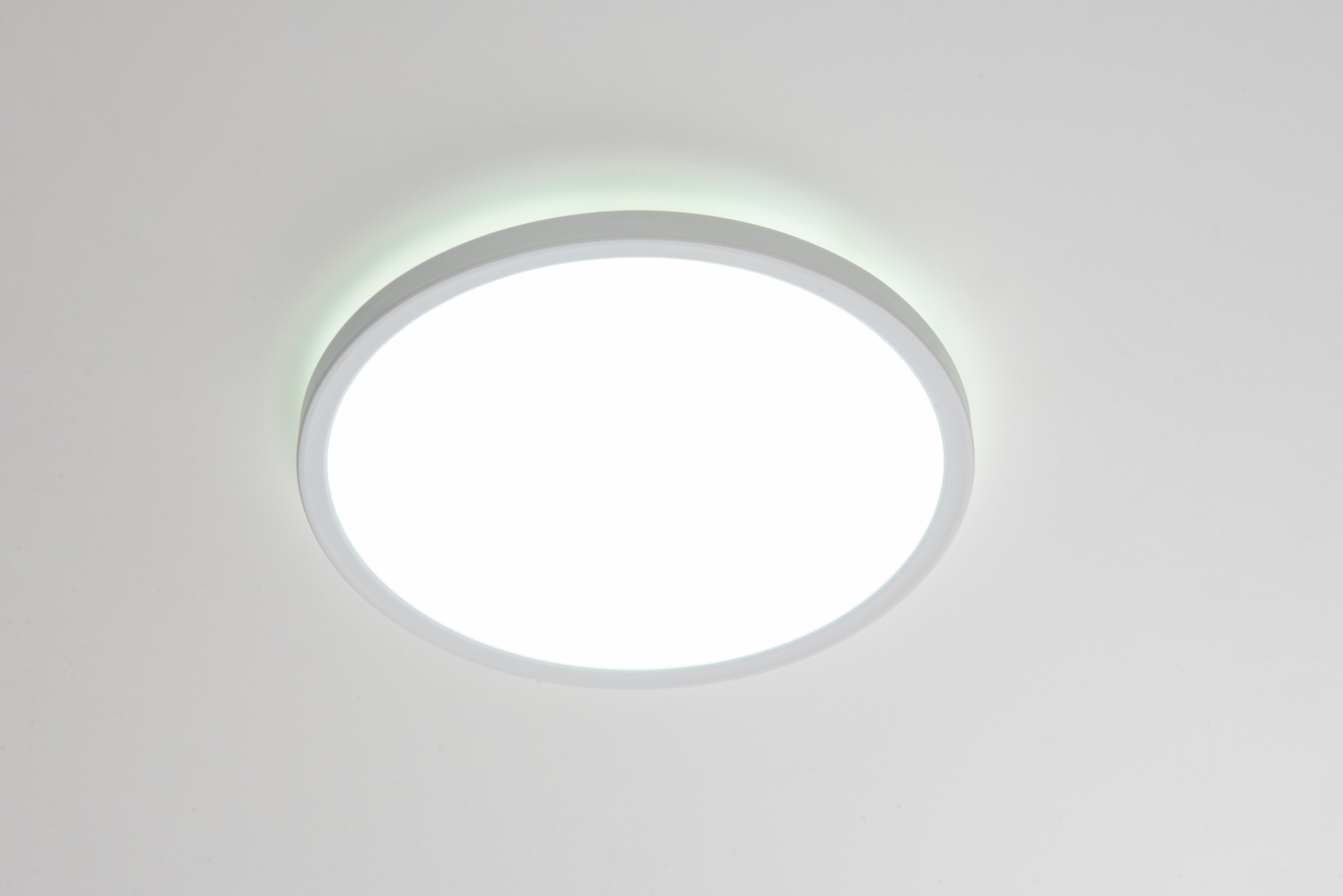

SmartHome Gabe Slim is a ceiling luminaire that can be connected to the household's WiFi. Its features are controlled with the easy-to-use Airam Smarthome app. A stylish luminaire with a very low frame structure: it is only 29 mm high. Choose either impressive RGB colours or different hues of white light that can be adjusted steplessly (2700 K – 6500 K). Furthermore, the luminaire features a backlight that reflects indirect light into the room via the surface the luminaire is attached to. The backlight cannot be controlled separately. Dim the light and use the app’s versatile timer options – you could, for example, set the luminaire to wake you up in the morning with a gentle glow. Available with a black or white edge.

Code

9471189

  • Three year extended warranty
  • Expert airam 247 support
  • Fast and reliable delivery
Add to favourites Add to favourites

Product Overview

For indoor use.

Protection rating: IP 20.

Fixed 18 W LED, 1400 lm RGB + 2700-6500 K.

Backlight.

Black or white edge.

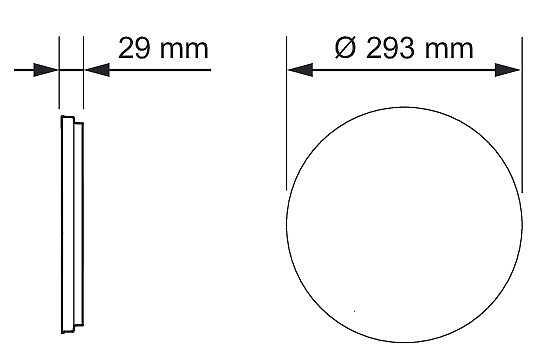

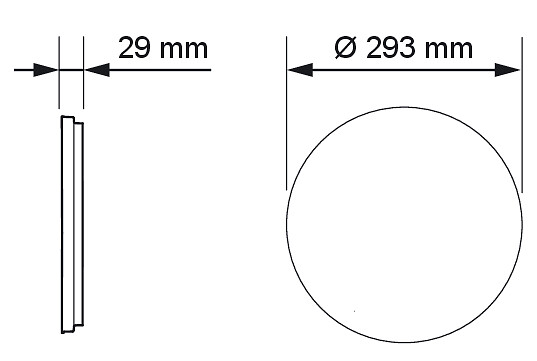

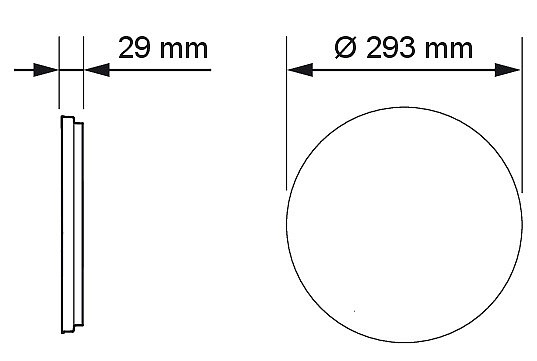

Size: Ø 293 mm, height 29 mm.

Technical details

Codes and names
GTIN
6435200308184
Product family
SmartHome Gabe Slim
Technical name
IP20 1400lm 18W 827-865 WH
Mounting
Suitable for wall mounting
No
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for recessed mounting
No
Suitable for surface mounting
Yes
Suitable for light line configuration
No
Fit for workplace acc. EN 12464-1
No
Suitable for emergency lighting
No
Type of wiring
Ending
Connectable conductor cross section (max) (mm²)
1,50
Structure
Lamp type
LED not exchangeable
Light source included
Yes
Housing material
Plastic
Housing colour
White
Exchangeable control gear
No
Energy efficiency class of light source according to EU regulation 2019/2015
F
Emergency power supply integrated
No
Electrotechnical data
Voltage type
AC
Nominal voltage (min) (V)
220
Nominal voltage (max) (V)
240
Maximum system power (W)
18
Luminaire efficacy (lm/W)
78
Dimming and control
Dimmable
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DALI-2
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming leading edge
No
Dimming programmable
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Zigbee
No
Dimming with push-button
No
With presence indicator
No
With movement sensor
No
Bluetooth operated
No
Compatible with Casambi
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
Yes
Compatible with Amazon Alexa
Yes
IFTTT support available
No
Photometric data
Light outlet
Direct/indirect
Effective luminous flux (lm)
1400
Colour temperature (min) (K)
2700
Colour temperature (max) (K)
6500
Colour temperature switchable
Continuously variable
Lumen setting adjustable
Continuously variable
Beam angle adjustable
No
Lifetime and capacity
Rated life time L70/B50 at 25 °C (h)
15000
Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
0
Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
40
Measurements
Height/depth (mm)
29
Outer diameter (mm)
293
