Zeo Duo 280 IP20 12W 830/840 PCO WH

Zeo Duo Surface mounted luminaire 12W 3000K/4000K 850lm No dim; IP20; IK10; Protection cl. II; L70B50 35000h; LED not exchangeable; CRI>80; 2x0.75mm²; Housing Plastic; Colour wh; Cover Plastic, opal

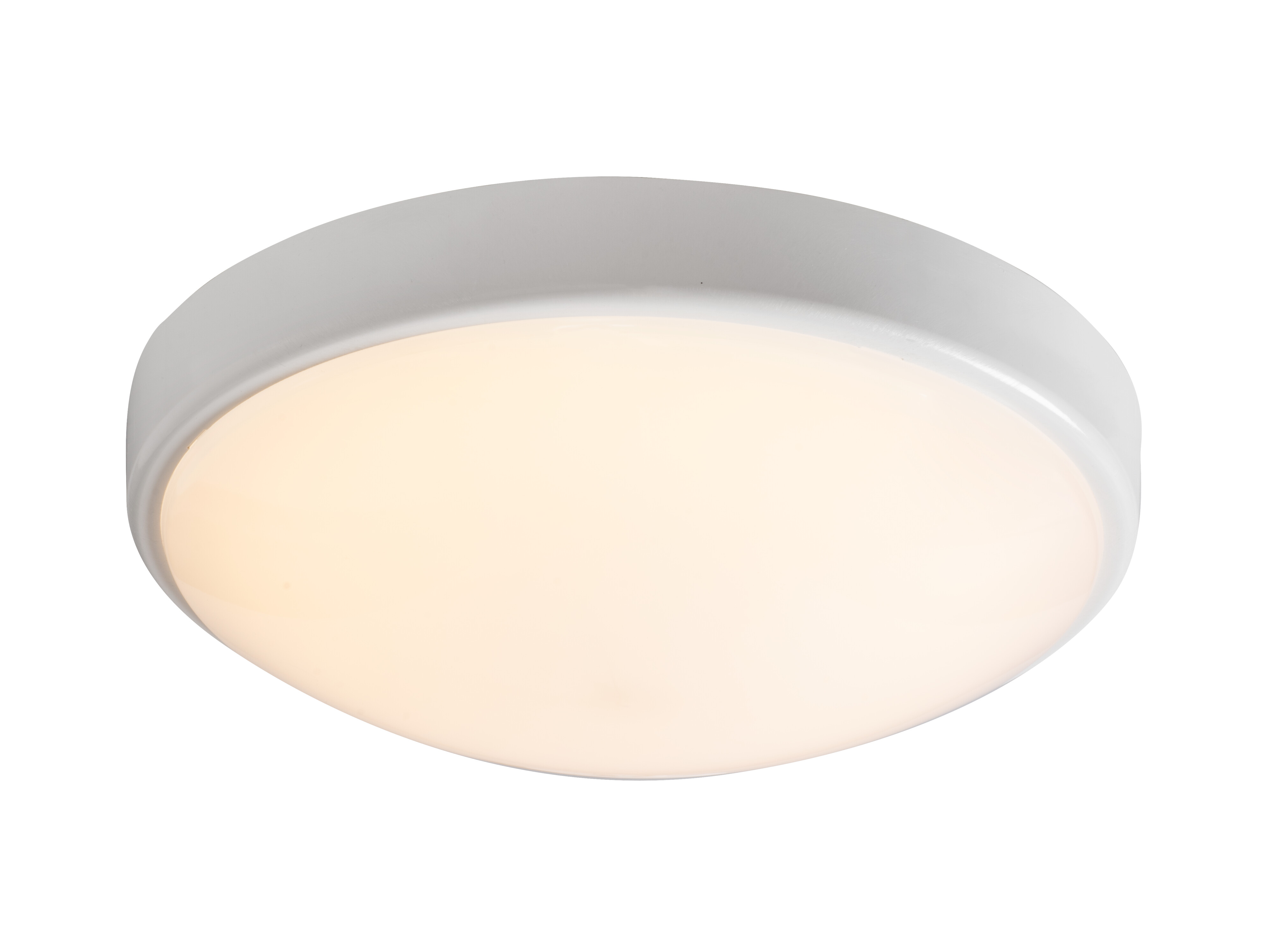

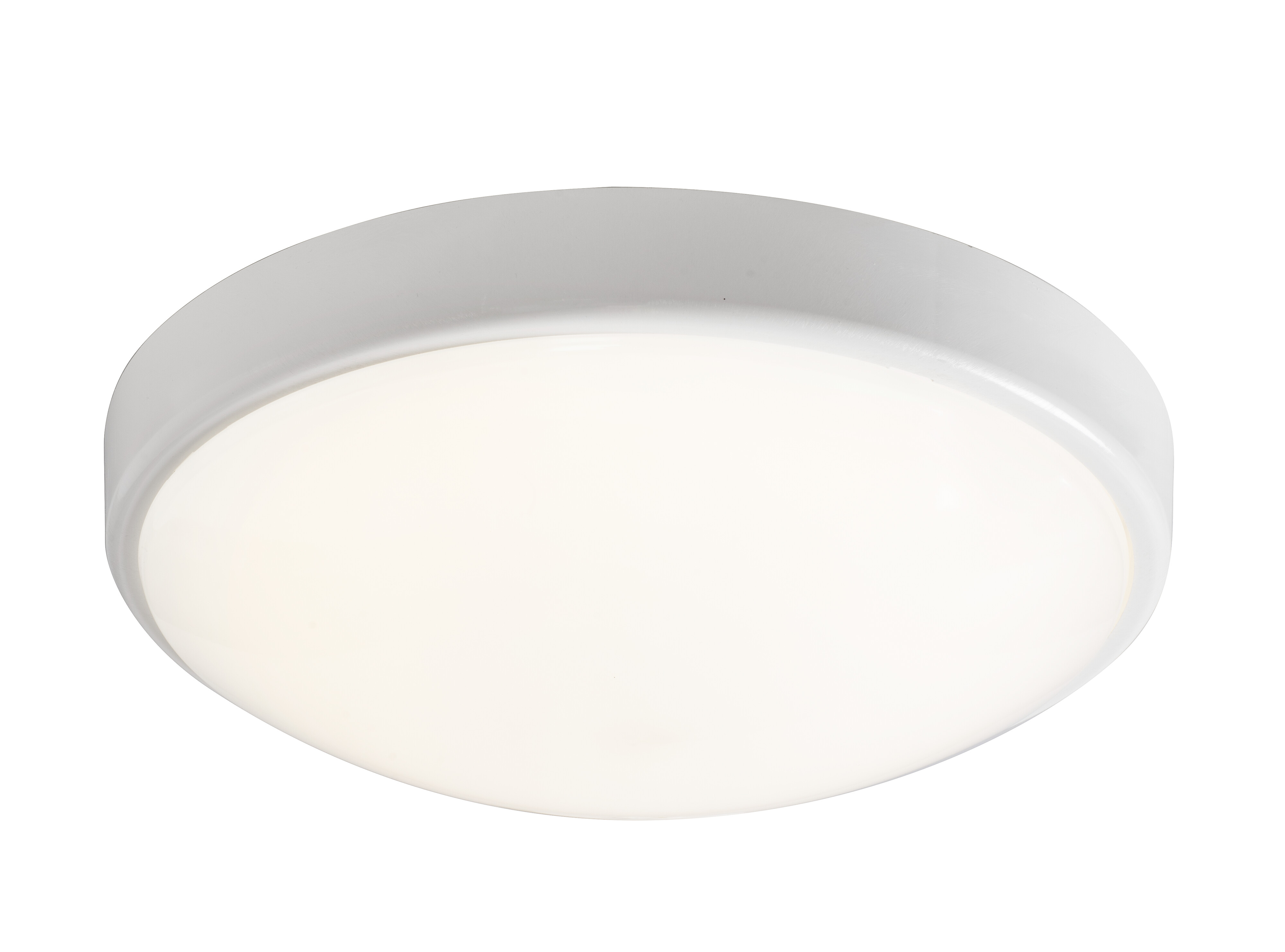

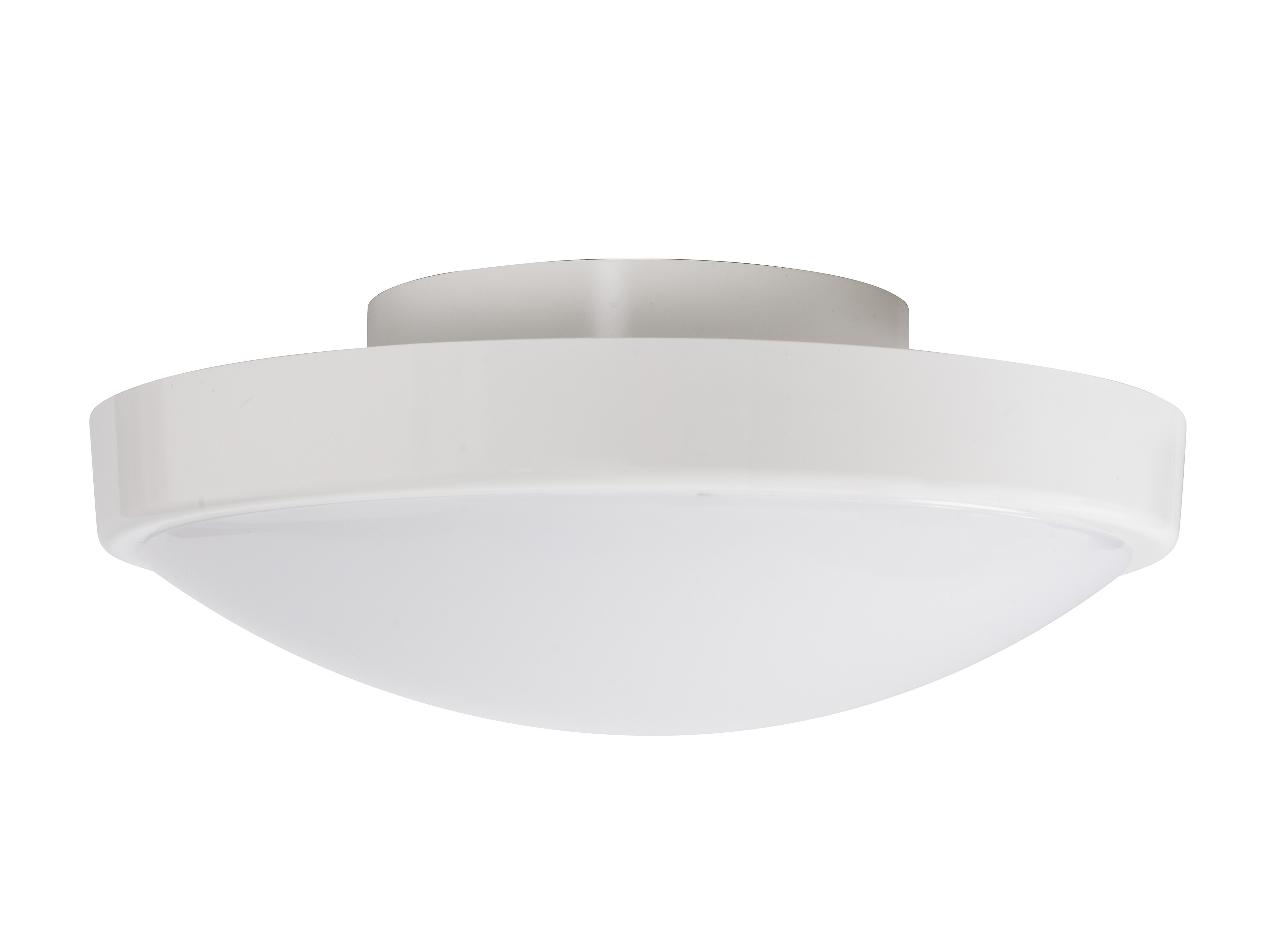

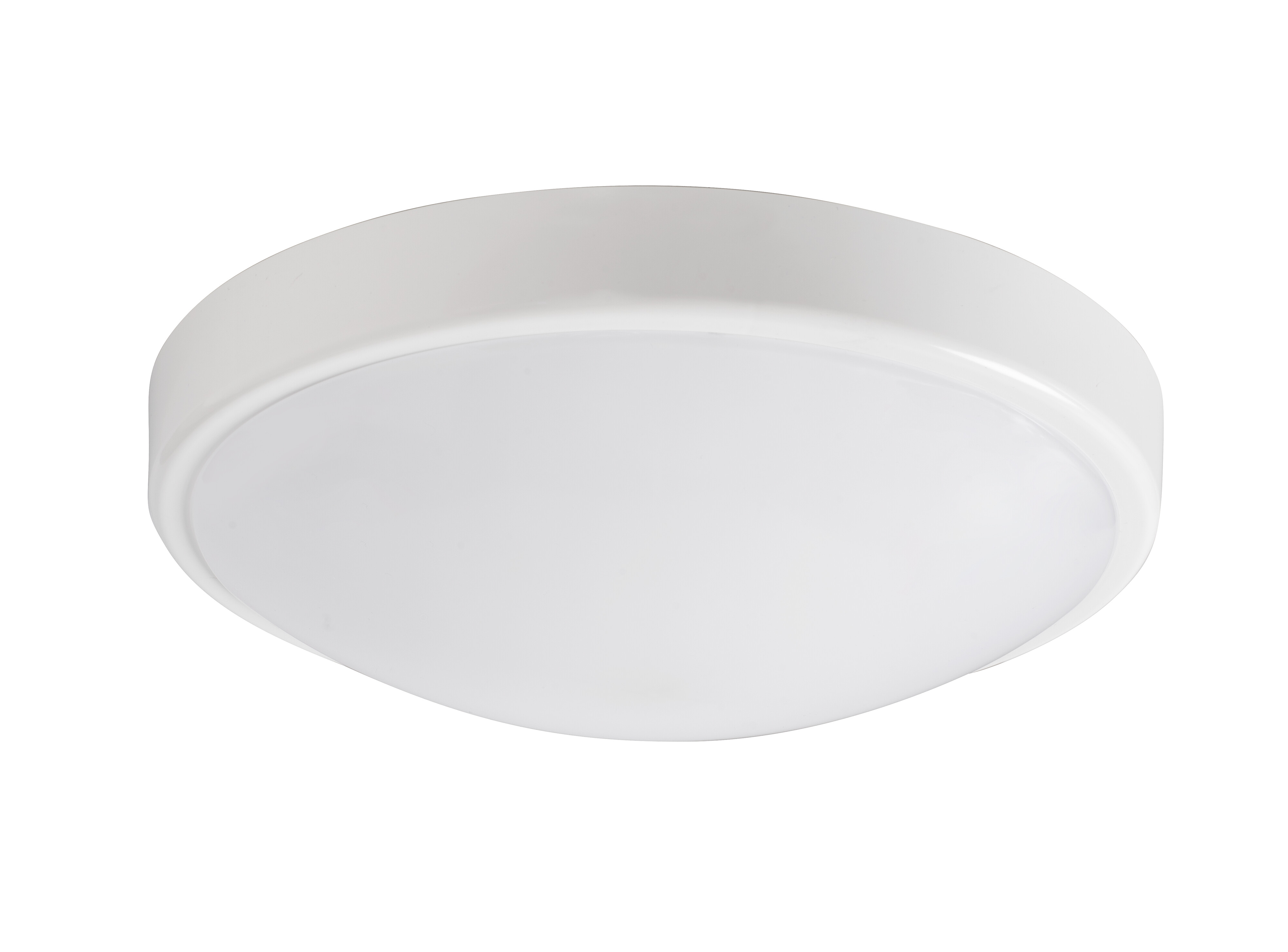

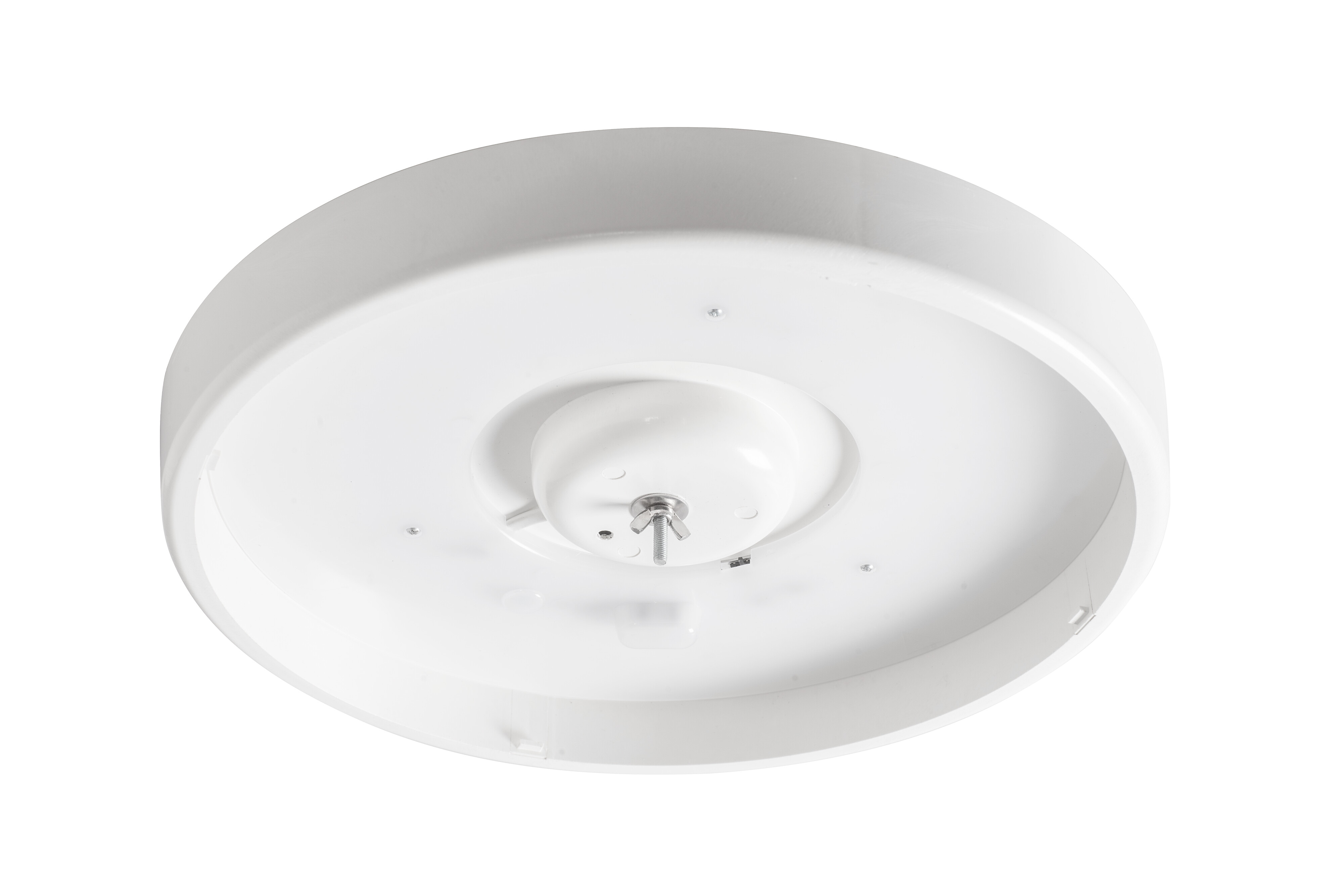

The round Zeo Duo ceiling light is designed for general lighting in dry indoor spaces and is installed directly into a ceiling lamp socket. The pre-wired lamp plug allows for quick and easy installation, and the luminaire can be hooked into place without tools. Before installation, you can conveniently select the desired colour temperature with a switch: white 3000 K or cool white 4000 K. The light is even and turns on instantly. The polycarbonate body and diffuser provide top-level impact resistance, rated IK10 against mechanical shocks.

Code

4126280

  • Three year extended warranty
  • Expert airam 247 support
  • Fast and reliable delivery
Add to favourites Add to favourites

Product Overview

Body made of plastic (PC), diffuser opal plastic (PC).

White, RAL 9016.

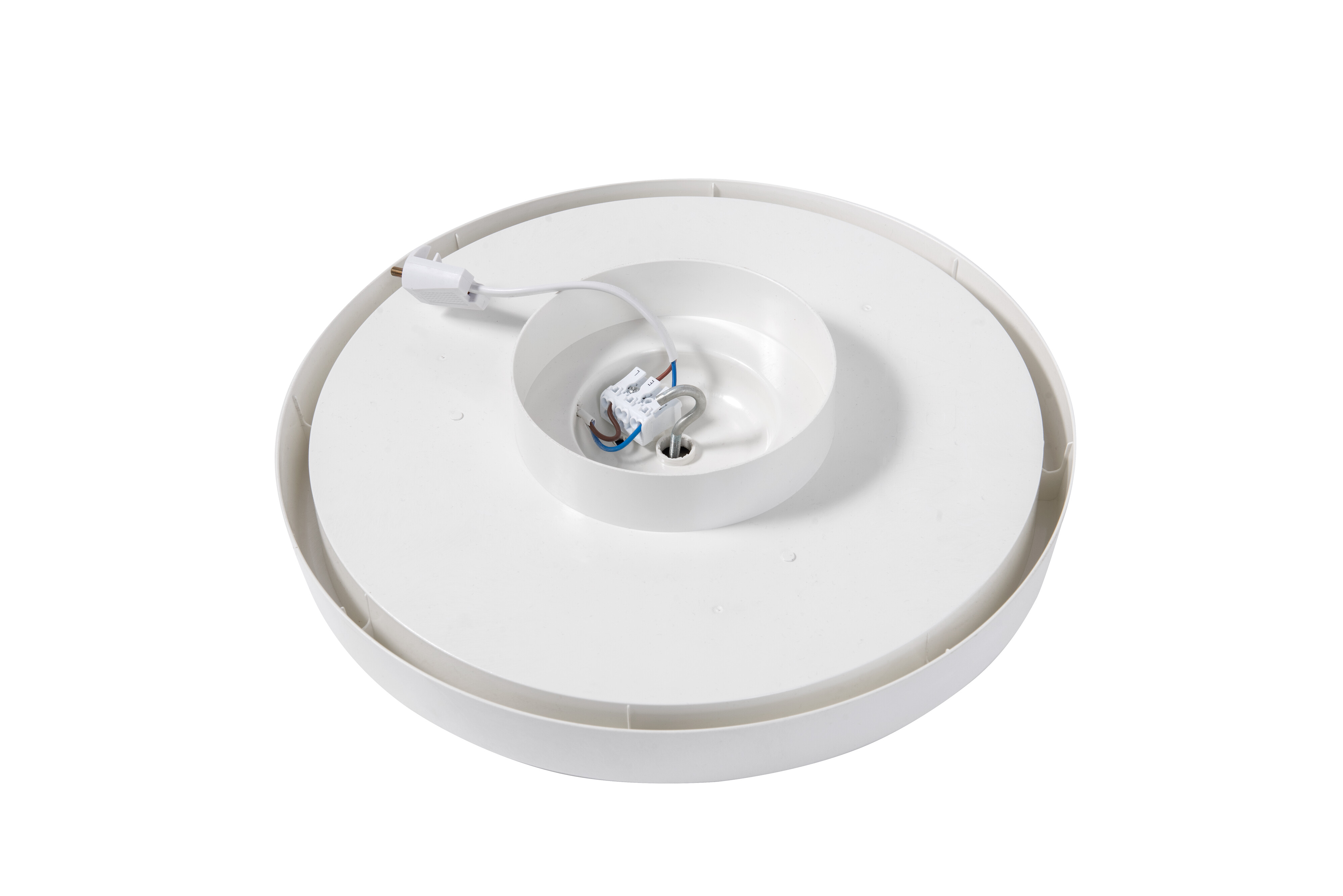

Surface mounting to ceiling lamp socket, 2 × 0.75 mm² plug and quick connector.

Colour temperature selectable on the luminaire, CCT 3000 K / 4000 K. CRI > 80 / Ra > 80.

Protection class IP20.

Impact resistance IK10.

Integrated AC LED, 12 W 850 lm and 18 W 1100 lm.

Operating temperature 0 … 25 °C.

Rated lifetime L70B50 35,000 h (Ta25°).

Mounting accessories included.

Round design, two sizes and power options.

Technical details

Codes and names
Airam code
A1ZEAC
GTIN
6435200249098
General name
Surface mounted luminaire
Product family
Zeo Duo
Technical name
280 IP20 12W 830/840 PCO WH
Mounting
Suitable for wall mounting
Yes
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for recessed mounting
No
Suitable for surface mounting
Yes
Suitable for light line configuration
No
Fit for workplace acc. EN 12464-1
No
Suitable for emergency lighting
No
Type of wiring
Ending
Number of poles
2
Conductor cross section (mm²)
0,75
Connection type
Plug
Structure
Lamp type
LED not exchangeable
Light source included
Yes
Suitable for number of lamps
1
Lamp holder
Other
Housing material
Plastic
Housing surface protection
Plastic-coated
Housing colour
White
Cover material
Plastic, opal
Type of grid
White
Control gear included
Yes
Exchangeable control gear
No
Energy efficiency class of light source according to EU regulation 2019/2015
G
Emergency power supply integrated
No
With air slots
No
Electrotechnical data
Voltage type
AC
Nominal voltage (min) (V)
220
Nominal voltage (max) (V)
240
Type of control gear
LED operating device current-controlled
Suitable for lamp power (min) (W)
12
Suitable for lamp power (max) (W)
12
Maximum system power (W)
12
Luminaire efficacy (lm/W)
70
Power factor
0,50
Dimming and control
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DALI-2
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming leading edge
No
Dimming programmable
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Zigbee
No
Dimming with push-button
No
No dimming function
Yes
With movement sensor
No
Constant luminous flux control
No
Bluetooth operated
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Photometric data
Light distributor
None
Light sharing
Symmetric
Beam angle
Open beam
Colour consistency (McAdam ellipse)
SDCM6
Light outlet
Direct
Colour of light (alphanumeric)
White
Effective luminous flux (lm)
850
Colour temperature (min) (K)
3000
Colour temperature (max) (K)
4000
Photobiological safety according to EN 62471
RG0
Colour temperature switchable
Discrete positions
Lumen setting adjustable
No
Beam angle adjustable
No
Lifetime and capacity
Rated life time L70/B50 at 25 °C (h)
35000
Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
0,70
Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
5
Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
0
Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
25

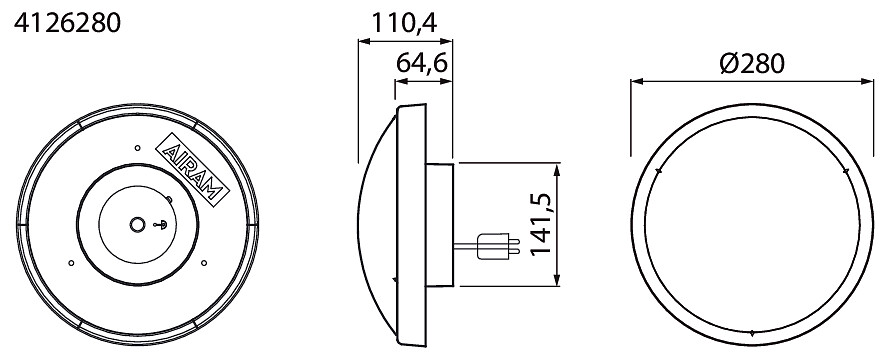

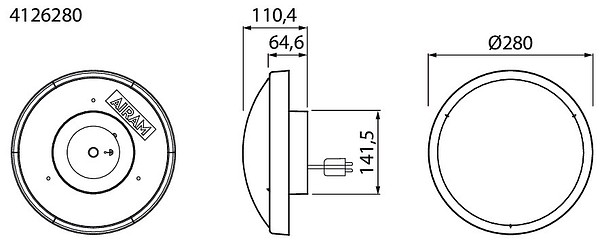

Measurements
Width (mm)
280
Height/depth (mm)
110
Length (mm)
280
Outer diameter (mm)
280
